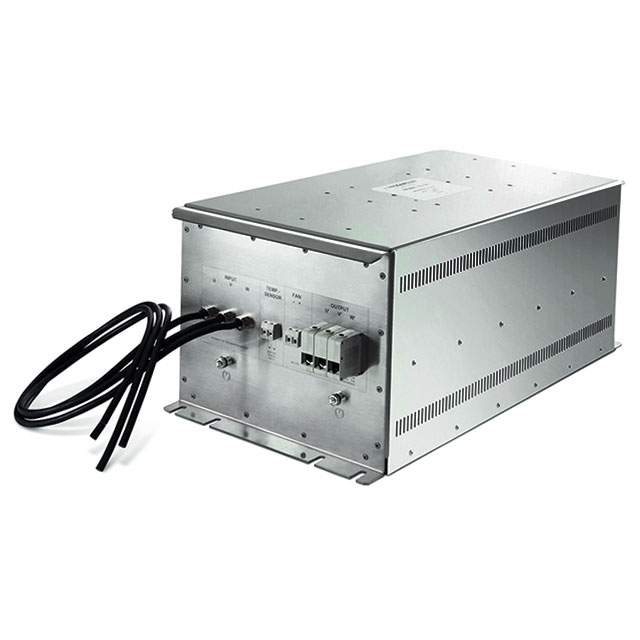

FN5020-75-35

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 75A CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 75A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN5020-75-35

Applications	Regenerative Motor Drive
Configuration	Single Stage
Current	75 A
Filter Type	Three Phase (Delta)
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads, Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	288 V
Voltage - Rated AC (Phase to Phase)	500 V

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Operating Temperature [custom]	Voltage - Rated AC (Phase to Phase)	Mounting Type	Termination Style	Configuration	Applications	Filter Type
TE Connectivity Raychem Cable Protection FN5020-75-35	288 V	75 A	-25 °C 100 °C	500 V	Chassis Mount	Terminal Block Wire Leads	Single Stage	Regenerative Motor Drive	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN5020-120-35	288 V	120 A	-25 °C 100 °C	500 V	Chassis Mount	Terminal Block Wire Leads	Single Stage	Regenerative Motor Drive	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN5020-55-34	288 V	55 A	-25 °C 100 °C	500 V	Chassis Mount	Terminal Block Wire Leads	Single Stage	Regenerative Motor Drive	Three Phase (Delta)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3741.80

General part information

Three Phase (Delta) EMC/EMI Line Filter 75 A Single Stage Terminal Block, Wire Leads

Technical documentation and resources

No documents available
