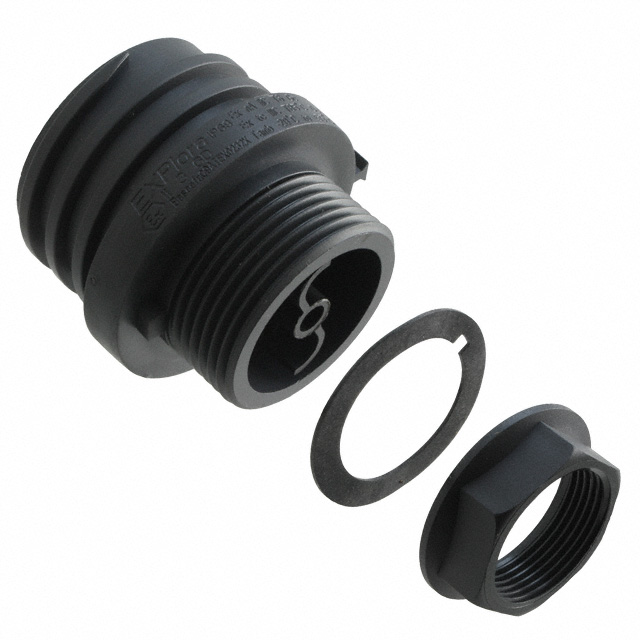

EXP-0931/02/S

Active

BULGIN LIMITED

CONN CIRCULAR SKT 2 POS SCREW ST CABLE MOUNT 2 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN CIRCULAR SKT 2 POS SCREW ST CABLE MOUNT 2 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-0931/02/S

Applications	Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	18 A
Features	UV Resistant
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Material	Primary Material	Features	Contact Material	Applications	Connector Type	Current Rating (Amps)	Termination	Voltage Rating	Mounting Feature	Number of Positions	Contact Finish - Mating	Color	Shielding	Orientation	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-0931/02/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut	2	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/04/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut		Nickel	Black	Unshielded	Keyed	UL94 V-0	1	3	4
BULGIN LIMITED EXP-0931/07/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	16 A	Screw	430 VAC/DC	Bulkhead - Front Side Nut	7	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/10/P	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Male Pins Receptacle	10 A	Screw	250 VAC	Bulkhead - Front Side Nut	10	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/03/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut		Nickel	Black	Unshielded	Keyed	UL94 V-0		2	3	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Receptacle, Female Sockets Screw
