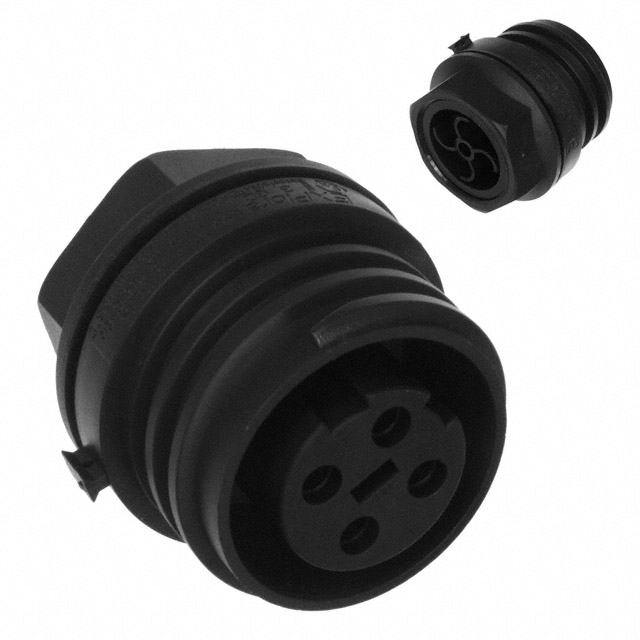

EXP-0931/04/S

Active

BULGIN LIMITED

ATEX ZONE II PANEL MOUNT CONNECTOR

Search across all available documentation for this part.

Active

BULGIN LIMITED

ATEX ZONE II PANEL MOUNT CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-0931/04/S

Applications	Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	18 A
Features	UV Resistant
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Material	Primary Material	Features	Contact Material	Applications	Connector Type	Current Rating (Amps)	Termination	Voltage Rating	Mounting Feature	Number of Positions	Contact Finish - Mating	Color	Shielding	Orientation	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-0931/02/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut	2	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/04/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut		Nickel	Black	Unshielded	Keyed	UL94 V-0	1	3	4
BULGIN LIMITED EXP-0931/07/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	16 A	Screw	430 VAC/DC	Bulkhead - Front Side Nut	7	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/10/P	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Male Pins Receptacle	10 A	Screw	250 VAC	Bulkhead - Front Side Nut	10	Nickel	Black	Unshielded	Keyed	UL94 V-0
BULGIN LIMITED EXP-0931/03/S	55 °C	-20 C	IP68 - Dust Tight Waterproof	Polyester	Plastic	UV Resistant	Brass	Industrial	Receptacle Female Sockets	18 A	Screw	600 VAC	Bulkhead - Front Side Nut		Nickel	Black	Unshielded	Keyed	UL94 V-0		2	3	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
