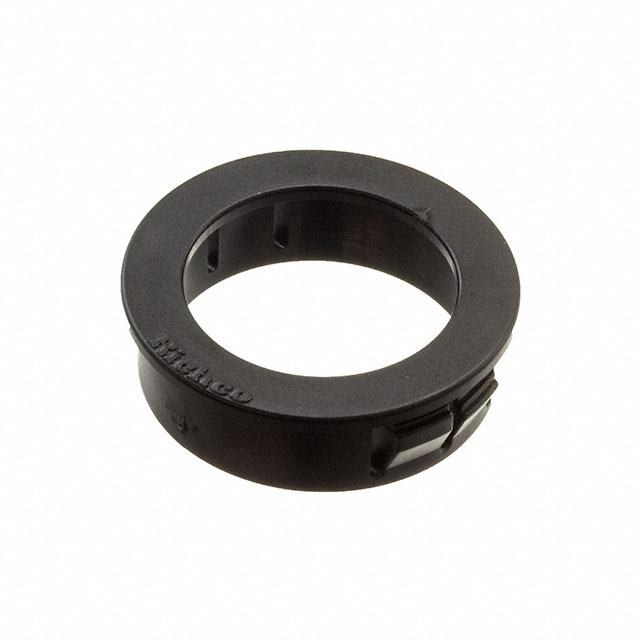

22MP13716

Active

Essentra Access Solutions

GROMMET, OPEN, 1 ", NYLON 6 (POLYAMIDE 6), 1.375 ", 0.125 "

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, OPEN, 1 ", NYLON 6 (POLYAMIDE 6), 1.375 ", 0.125 "

Technical Specifications

Parameters and characteristics for this part

Specification	22MP13716

Bushing, Grommet Type	Bushing
Color	Black
Diameter - Inside [diameter]	25.4 mm
Diameter - Inside [diameter]	1 in
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [diameter]	34.93 mm
Panel Cutout Dimensions [diameter]	1.375 in
Panel Thickness	0.125 in
Panel Thickness	3.18 mm

Part	Material	Bushing, Grommet Type	Features	Panel Thickness	Panel Thickness	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material Flammability Rating	Color	For Use With/Related Products	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Dimensions
Essentra Access Solutions 22MP10914W	Polyamide (PA66) Nylon 6/6	Bushing	Snap-Mount	0.125 in	3.18 mm	22.22 mm	0.875 in	1.093 in	27.76 mm	UL94 V-2	White	Cable Wires
Essentra Access Solutions 22MP15017	Polyamide (PA66) Nylon 6/6	Bushing		0.125 in	3.18 mm	26.97 mm	1.062 in	1.5 in	38.1 mm	UL94 V-2	Black	Cable Wires	Circular
Essentra Access Solutions 22MP13716	Polyamide (PA66) Nylon 6/6	Bushing		0.125 in	3.18 mm	25.4 mm	1 in	1.375 in	34.93 mm	UL94 V-2	Black	Cable Wires
Essentra Access Solutions 22MP12515	Polyamide (PA66) Nylon 6/6	Bushing		0.125 in	3.18 mm	23.8 mm	0.937 in	1.25 in	31.75 mm	UL94 V-2	Black	Cable Wires
Essentra Access Solutions 22MP10012W	Polyamide (PA66) Nylon 6/6	Bushing	Snap-Mount	0.125 in	3.18 mm	19.05 mm	0.75 in	1 in	25.4 mm	UL94 V-2	White	Cable Wires
Essentra Access Solutions 22MP10913	Polyamide (PA66) Nylon 6/6	Bushing		0.125 in	3.18 mm	20.62 mm	0.812 in	1.093 in	27.76 mm	UL94 V-2	Black	Cable Wires
Essentra Access Solutions 22MP15018W	Polyamide (PA66) Nylon 6/6	Bushing	Snap-Mount	0.125 in	3.18 mm	28.58 mm	1.125 in	1.5 in	38.1 mm	UL94 V-2	White	Cable Wires	Circular
Essentra Access Solutions 22MP15021	Polyamide (PA66) Nylon 6/6	Bushing		0.125 in	3.18 mm	33.32 mm	1.312 in			UL94 V-2	Black	Cable Wires		38.33 mm	1.509 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 1.375" (34.93mm) Bushing 1.000" (25.40mm) Black
