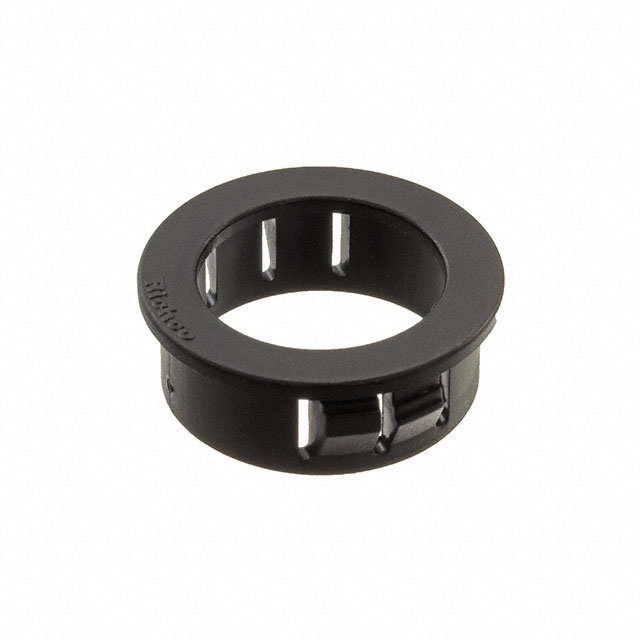

22MP10913
ActiveEssentra Access Solutions
SNAP FIT BUSHING: .812 IN (20.6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
22MP10913
ActiveEssentra Access Solutions
SNAP FIT BUSHING: .812 IN (20.6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22MP10913 |
|---|---|
| Bushing, Grommet Type | Bushing |
| Color | Black |
| Diameter - Inside [diameter] | 20.62 mm |
| Diameter - Inside [diameter] | 0.812 in |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [diameter] | 1.093 in |
| Panel Cutout Dimensions [diameter] | 27.76 mm |
| Panel Thickness | 0.125 in |
| Panel Thickness | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.19 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
Description
General part information
22MP1 Series
Circular - 1.093" (27.76mm) Bushing 0.812" (20.62mm) Black
