5229996-4

Active

TE Connectivity Raychem Cable Protection

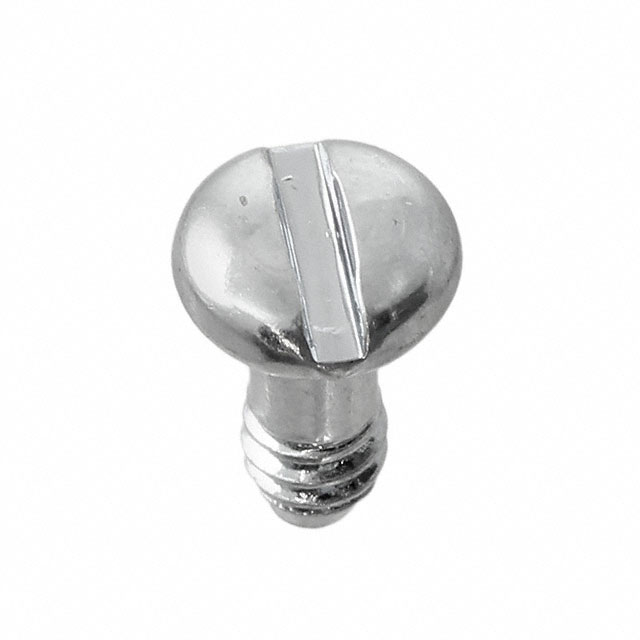

SCREW, PAN HD, CAPTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ENG_CD_5229996_B1.pdf

5229996-4

Active

TE Connectivity Raychem Cable Protection

SCREW, PAN HD, CAPTIVE

Deep-Dive with AI

DocumentsDatasheet ENG_CD_5229996_B1.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5229996-4

Accessory Type	Jackscrew, Slotted
For Use With/Related Products	CHAMP D-Sub Connectors
Length - Below Head [x]	6.73 mm
Length - Below Head [x]	0.265 in
Length - Threaded Portion Below Head [custom]	0.11 "
Length - Threaded Portion Below Head [custom]	2.79 mm
Thread Size	4-40

CHAMP Docking Connectors Series

I/O Connectors ASSY PLUG 50 POS B SLOT

Part	Contact Finish	Features	Number of Positions	Termination	Number of Rows	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Flange Feature	Accessory Type	Cable Type	Primary Material	Material	Hardware	Color	Shielding	Cable Exit	Contact Finish Thickness	Features [Min]	Features [Max]	For Use With/Related Products	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head [custom]
TE Connectivity Raychem Cable Protection 5-555012-2	Gold	Backshell Bail Lock Shielded	50	IDC	2	Center Strip Contacts	0.76 Ám	30 Áin	Plug	Free Hanging (In-Line) Right Angle
TE Connectivity Raychem Cable Protection 2-5229913-1	Gold	Backshell Cable Clamp Dust Cover Mounting Hardware	50	IDC	2	Outer Shroud Contacts	0.76 Ám	30 Áin	Receptacle	Free Hanging (In-Line) Right Angle	Housing/Shell (4-40)
TE Connectivity Raychem Cable Protection 4-552008-1			50									Two Piece Backshell	Round	Plastic	Polyphenylene Oxide (PPO)	Strain Relief	Black	Unshielded	180 °
TE Connectivity Raychem Cable Protection 3-552008-1			50									Two Piece Backshell	Round	Plastic	Polyphenylene Oxide (PPO)	Strain Relief	Black	Unshielded	180 °
TE Connectivity Raychem Cable Protection 552272-1	Gold	Bail Lock	24	IDC	2	Center Strip Contacts	0.76 Ám	30 Áin	Plug	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 554955-2	Gold	Shielded	50	IDC	2	Outer Shroud Contacts			Receptacle	Free Hanging (In-Line)	Housing/Shell (Unthreaded)									Flash
TE Connectivity Raychem Cable Protection 5552562-1												Bail Lock Assembly									4	40	CHAMP D-Sub Connectors
TE Connectivity Raychem Cable Protection 5229996-4												Jackscrew Slotted											CHAMP D-Sub Connectors	4-40	6.73 mm	0.265 in	0.11 "	2.79 mm
TE Connectivity Raychem Cable Protection 5552562-2		Hardware Included										Jackscrew Slotted											CHAMP D-Sub Connectors	4-40
TE Connectivity Raychem Cable Protection 1-552079-1			14									Two Piece Backshell	Round	Plastic	Thermoplastic	Strain Relief	Black	Unshielded	180 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.78
		25	$ 0.75
		50	$ 0.74
		100	$ 0.64
		250	$ 0.62
		500	$ 0.59
		1000	$ 0.51
		2500	$ 0.47

Description

General part information

CHAMP Docking Connectors Series

I/O Connectors ASSY PLUG 50 POS B SLOT

Documents

Technical documentation and resources

Datasheet

Digital Datasheet

ENG_CD_5229996_B1.pdf

Product Drawings
