2-5229913-1

Active

TE Connectivity Raychem Cable Protection

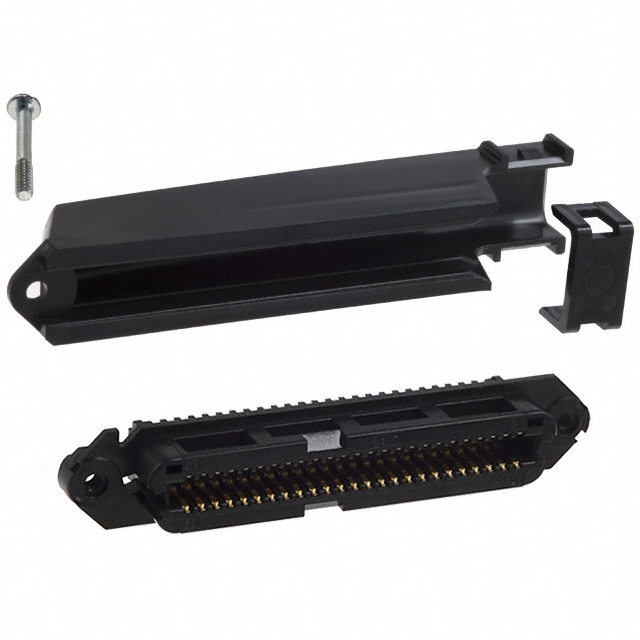

KIT, RCPT, 50 POS, B SLOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-5229913-1

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Cable Clamp, Mounting Hardware, Backshell, Dust Cover
Flange Feature	Housing/Shell (4-40)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	50
Number of Rows	2
Termination	IDC

CHAMP Docking Connectors Series

I/O Connectors ASSY PLUG 50 POS B SLOT

Part	Contact Finish	Features	Number of Positions	Termination	Number of Rows	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Flange Feature	Accessory Type	Cable Type	Primary Material	Material	Hardware	Color	Shielding	Cable Exit	Contact Finish Thickness	Features [Min]	Features [Max]	For Use With/Related Products	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head [custom]
TE Connectivity Raychem Cable Protection 5-555012-2	Gold	Backshell Bail Lock Shielded	50	IDC	2	Center Strip Contacts	0.76 Ám	30 Áin	Plug	Free Hanging (In-Line) Right Angle
TE Connectivity Raychem Cable Protection 2-5229913-1	Gold	Backshell Cable Clamp Dust Cover Mounting Hardware	50	IDC	2	Outer Shroud Contacts	0.76 Ám	30 Áin	Receptacle	Free Hanging (In-Line) Right Angle	Housing/Shell (4-40)
TE Connectivity Raychem Cable Protection 4-552008-1			50									Two Piece Backshell	Round	Plastic	Polyphenylene Oxide (PPO)	Strain Relief	Black	Unshielded	180 °
TE Connectivity Raychem Cable Protection 3-552008-1			50									Two Piece Backshell	Round	Plastic	Polyphenylene Oxide (PPO)	Strain Relief	Black	Unshielded	180 °
TE Connectivity Raychem Cable Protection 552272-1	Gold	Bail Lock	24	IDC	2	Center Strip Contacts	0.76 Ám	30 Áin	Plug	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 554955-2	Gold	Shielded	50	IDC	2	Outer Shroud Contacts			Receptacle	Free Hanging (In-Line)	Housing/Shell (Unthreaded)									Flash
TE Connectivity Raychem Cable Protection 5552562-1												Bail Lock Assembly									4	40	CHAMP D-Sub Connectors
TE Connectivity Raychem Cable Protection 5229996-4												Jackscrew Slotted											CHAMP D-Sub Connectors	4-40	6.73 mm	0.265 in	0.11 "	2.79 mm
TE Connectivity Raychem Cable Protection 5552562-2		Hardware Included										Jackscrew Slotted											CHAMP D-Sub Connectors	4-40
TE Connectivity Raychem Cable Protection 1-552079-1			14									Two Piece Backshell	Round	Plastic	Thermoplastic	Strain Relief	Black	Unshielded	180 °
