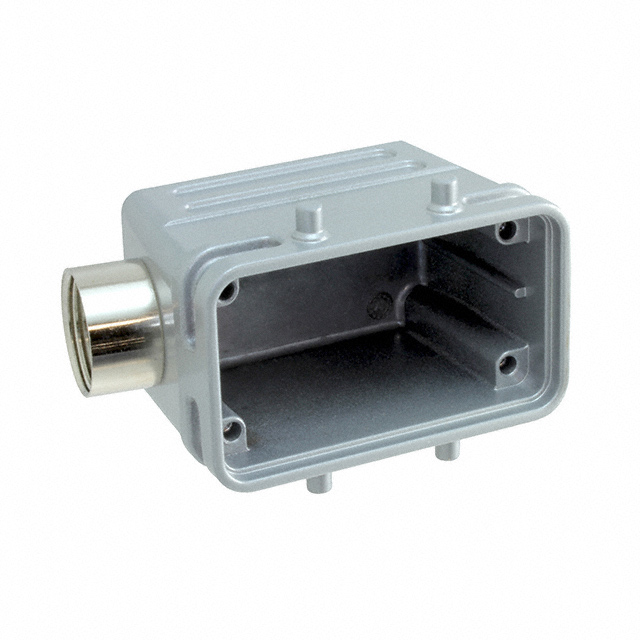

C14610G0105001

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE10 PG16

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE10 PG16

Technical Specifications

Parameters and characteristics for this part

Specification	C14610G0105001

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 "
Style	Side Entry
Thread Size	PG16

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Material	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Connector Type	Style	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C14610G0106038	100 °C	-40 °C	Locking Clip (2) on Hood	Aluminum Die Cast	PG29	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	IP65 - Dust Tight Water Resistant	Hood	Top Entry	E10
Amphenol Tuchel Industrial C14610G0105001	100 °C	-40 °C	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	PG16				2.008 "	1.693 in	2.874 in	IP65 - Dust Tight Water Resistant	Hood	Side Entry	E10	73 mm	51 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG16 E10 IP65 - Dust Tight, Water Resistant
