C14610G0106038

Active

Amphenol Tuchel Industrial

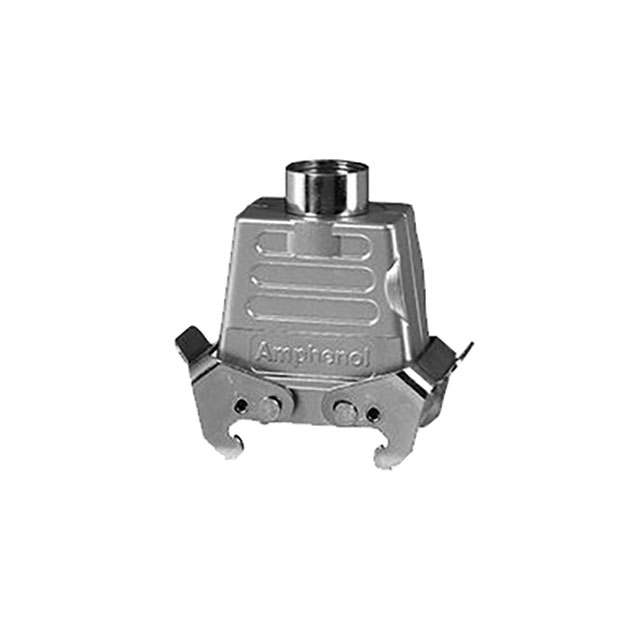

CONN HOOD TOP ENTRY SZE10 PG29

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE10 PG29

Technical Specifications

Parameters and characteristics for this part

Specification	C14610G0106038

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.756 in
Size / Dimension [z]	70 mm
Style	Top Entry
Thread Size	PG29

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Material	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Connector Type	Style	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C14610G0106038	100 °C	-40 °C	Locking Clip (2) on Hood	Aluminum Die Cast	PG29	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	IP65 - Dust Tight Water Resistant	Hood	Top Entry	E10
Amphenol Tuchel Industrial C14610G0105001	100 °C	-40 °C	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	PG16				2.008 "	1.693 in	2.874 in	IP65 - Dust Tight Water Resistant	Hood	Side Entry	E10	73 mm	51 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 27.98

General part information

Hood Connector Top Entry PG29 E10 IP65 - Dust Tight, Water Resistant
