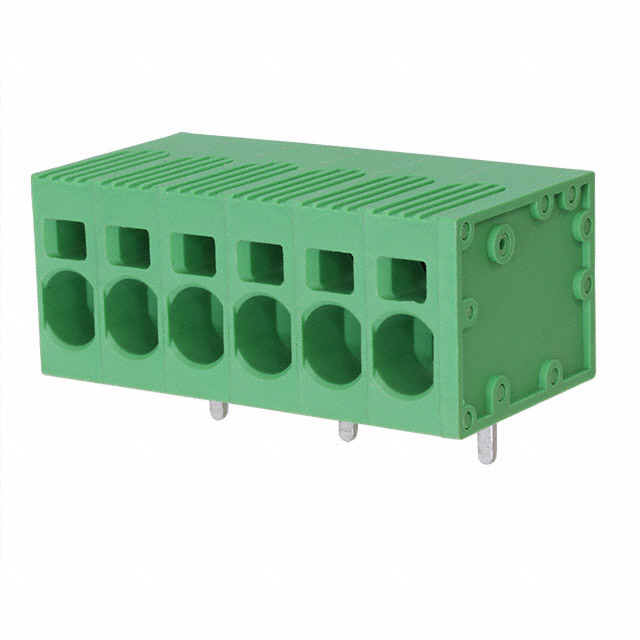

EB167A-06-M

Active

Adam Tech

EURO BLOCK, 6 POSITION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXCFR2.E333935- Terminal Blocks Datasheet +2

EB167A-06-M

Active

Adam Tech

EURO BLOCK, 6 POSITION

Deep-Dive with AI

DocumentsXCFR2.E333935- Terminal Blocks Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB167A-06-M

Color	Green
Current	40 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	6
Voltage	600 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	8 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

EB167A Series

Part	Pitch [x]	Pitch [x]	Number of Levels	Wire Termination	Current	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Voltage	Mating Orientation	Housing Material	Contact Material - Plating	Wire Gauge [Min]	Wire Gauge [Max]	Color
Adam Tech EB167A-02-M-180	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	2	600 V	Vertical with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	8 AWG	24 AWG	Green
Adam Tech EB167A-05-H-180	0.394 in	10 mm	1	Screwless - Spring Cage Tension Clamp	66 A	Through Hole	-40 °C	105 ░C	5	600 V	Horizontal with Board		Copper Alloy - Tin Plated	4 AWG	18 AWG	Green
Adam Tech EB167A-02-M	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	2	600 V	Horizontal with Board	Polyamide (PA) Nylon		8 AWG	24 AWG	Green
Adam Tech EB167A-04-M	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	4	600 V	Horizontal with Board	Polyamide (PA) Nylon		8 AWG	24 AWG	Green
Adam Tech EB167A-06-M	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	6	600 V	Horizontal with Board	Polyamide (PA) Nylon		8 AWG	24 AWG	Green
Adam Tech EB167A-05-M-180	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	5	600 V	Vertical with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	8 AWG	24 AWG	Green
Adam Tech EB167A-06-H	0.394 in	10 mm	1	Push-In Spring Screwless - Leg Spring	66 A	Through Hole	-40 °C	105 ░C	6	600 V	Horizontal with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	4 AWG	18 AWG	Green
Adam Tech EB167A-06-M-180	0.295 in	7.5 mm	1	Push-In Spring Screwless - Leg Spring	40 A	Through Hole	-40 °C	105 ░C	6	600 V	Vertical with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	8 AWG	24 AWG	Green
Adam Tech EB167A-03-H	0.394 in	10 mm	1	Push-In Spring Screwless - Leg Spring	66 A	Through Hole	-40 °C	105 ░C	3	600 V	Horizontal with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	4 AWG	18 AWG	Green
Adam Tech EB167A-05-H	0.394 in	10 mm	1	Push-In Spring Screwless - Leg Spring	66 A	Through Hole	-40 °C	105 ░C	5	600 V	Horizontal with Board	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	4 AWG	18 AWG	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.21
		10	$ 1.32
		25	$ 1.15

Description

General part information

EB167A Series

6 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
