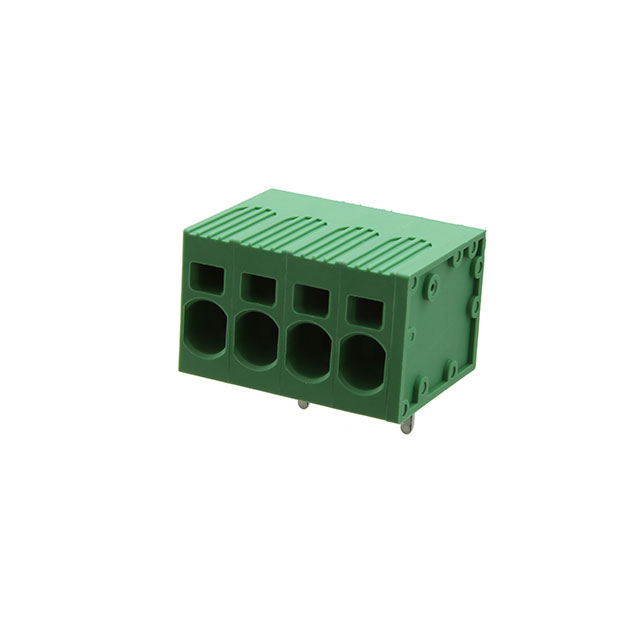

EB167A-04-M
ActiveAdam Tech
EURO BLOCK, 4 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
EB167A-04-M
ActiveAdam Tech
EURO BLOCK, 4 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB167A-04-M |
|---|---|
| Color | Green |
| Current | 40 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.295 in |
| Pitch [x] | 7.5 mm |
| Positions Per Level | 4 |
| Voltage | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 8 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.06 | |
| 10 | $ 2.74 | |||
| 25 | $ 2.48 | |||
| 50 | $ 2.34 | |||
| 100 | $ 2.24 | |||
| 250 | $ 2.14 | |||
| 500 | $ 2.08 | |||
| 1000 | $ 2.04 | |||
| 5000 | $ 1.98 | |||
Description
General part information
EB167A Series
4 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
