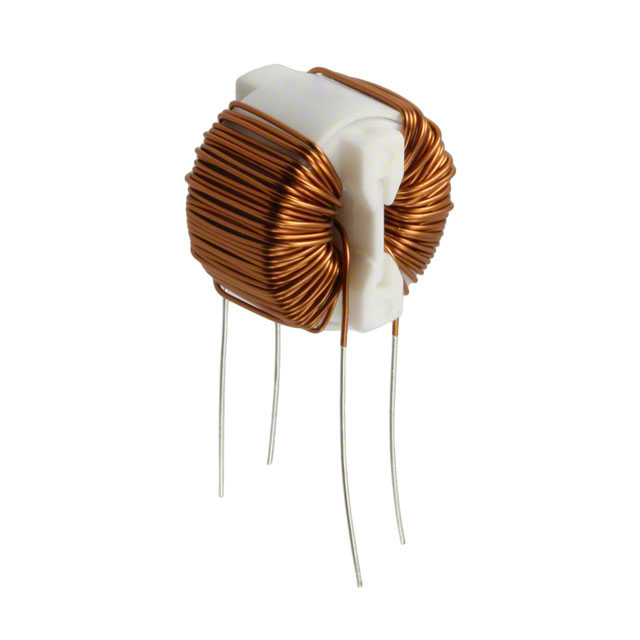

SC-01-80G - SC-01-80G

SC-01-80G

Active
KEMET

COMMON MODE FILTER, 8000UH, THD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetKEM_LF0011_SC-G-GS.pdf+3
SC-01-80G - SC-01-80G

SC-01-80G

Active
KEMET

COMMON MODE FILTER, 8000UH, THD

Deep-Dive with AI

DocumentsDatasheetKEM_LF0011_SC-G-GS.pdf+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSC-01-80G
Current Rating (Max) [Max]1 A
DC Resistance (DCR) (Max) [Max]300 mOhm
Filter TypePower Line
Height (Max) [Max]0.689 in
Height (Max) [Max]17.5 mm
Inductance @ Frequency8 mH, 100 kHz
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / CaseNo Base, Vertical, 4 PC Pin
Size / Dimension [custom]0.551 "
Size / Dimension [custom]14 mm
Size / Dimension [diameter]17.5 mm
Size / Dimension [diameter]0.689 "
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.13
10$ 3.35
100$ 2.42
1000$ 2.21
NewarkEach 1$ 4.23
10$ 2.72
25$ 2.65
50$ 2.59
100$ 2.52
500$ 2.30
1000$ 2.20

Description

General part information

SC-01 Series

8 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 1A DCR 300mOhm
