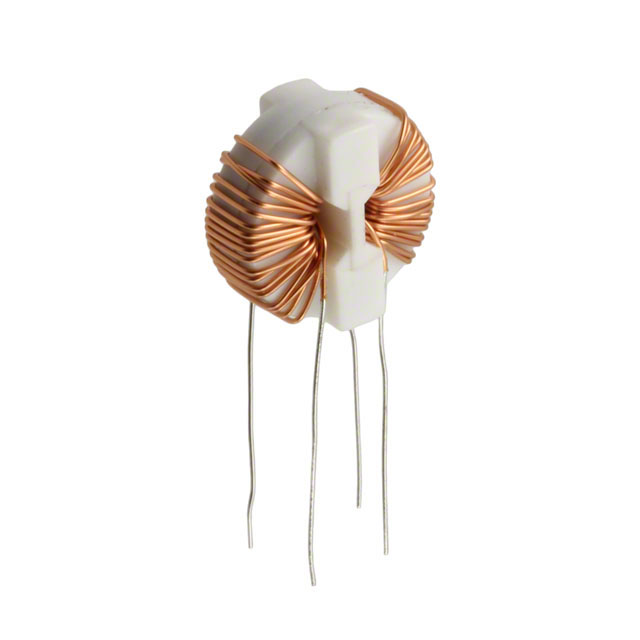

SC-01-10GS

Active

KEMET

COMMON MODE FILTER, 1000UH, THD

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 1000UH, THD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Mounting Type	DC Resistance (DCR) (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Inductance @ Frequency	Package / Case	Number of Lines	Voltage Rating - DC	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [Max]	Height (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [custom]	Size / Dimension [custom]
KEMET SC-01-10GS	250 V	Through Hole	130 mOhm	0.591 inches	0.335 inches	15 mm	8.5 mm	1 mH	4 PC Pin No Base Vertical	2	250 V	Power Line	-40 °C	105 ░C	15 mm	0.591 in	1 A
KEMET SC-01-80G	250 V	Through Hole	300 mOhm	0.689 "		17.5 mm		8 mH 100 kHz	4 PC Pin No Base Vertical	2	250 V	Power Line	-40 °C	105 ░C	17.5 mm	0.689 in	1 A	0.551 "	14 mm
KEMET SC-01-30G	250 V	Through Hole	120 mOhm	0.689 "		17.5 mm		3 mH	4 PC Pin No Base Vertical	2	250 V	Power Line	-40 °C	105 ░C	17.5 mm	0.689 in	1 A	0.551 "	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 1A DCR 130mOhm
