21.732PA7035

Active

Jacob GmbH

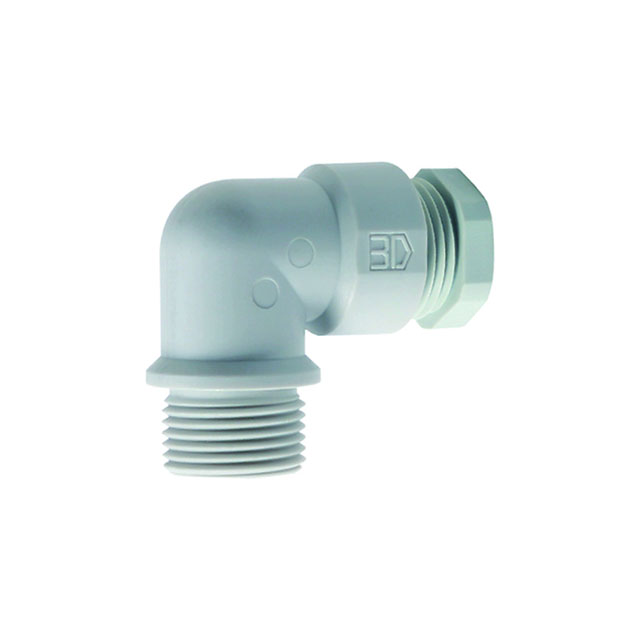

CABLE GLAND RA 14-20MM M32

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND RA 14-20MM M32

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	21.732PA7035	21.732 Series

Color	Gray	Silver, Gray
Includes	Sealing Ring	Locknut, Seal, O-Ring, Sealing Ring
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Material	-	Zinc, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.787 "	0.787 "
Outside Cable Diameter (Max) [Max] [diameter]	20 mm	20 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm	14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in	0.551 in
Thread Length	14 mm	14 mm
Thread Length	0.551 in	0.551 in
Thread Size	M32x1.5	M32x1.5
Type	Cable Gland - 90°	Cable Gland - 90°

CABLE GLAND RA 14-20MM M32 ZINC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thread Size	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Length	Thread Length
Jacob GmbH 21.732M	100 °C	-20 C	Cable Gland - 90°	M32x1.5	Locknut, O-Ring, Seal	Zinc, Nickel Plated	0.787 "	20 mm	IP55 - Dust Protected, Water Resistant	14 mm	0.551 in	Silver
Jacob GmbH 21.732PA7035	100 °C	-20 C	Cable Gland - 90°	M32x1.5	Sealing Ring		0.787 "	20 mm	IP55 - Dust Protected, Water Resistant	14 mm	0.551 in	Gray	14 mm	0.551 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland - 90° Polyamide (PA6), Nylon 6 M32x1.5 Gray
