21.732M

Active

Jacob GmbH

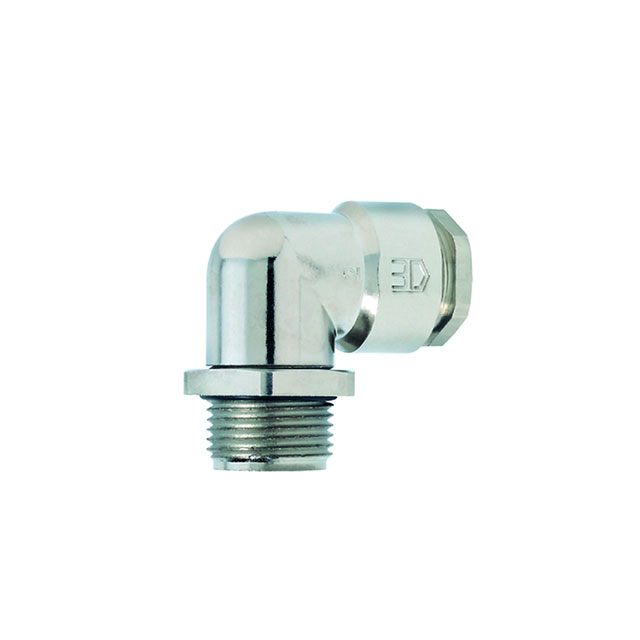

CABLE GLAND RA 14-20MM M32 ZINC

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND RA 14-20MM M32 ZINC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 15.37

General part information

Cable Gland - 90° Zinc, Nickel Plated M32x1.5 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	21.732M	21.732 Series

Color	Silver	Silver, Gray
Includes	Locknut, Seal, O-Ring	Locknut, Seal, O-Ring, Sealing Ring
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Material	Zinc, Nickel Plated	Zinc, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.787 "	0.787 "
Outside Cable Diameter (Max) [Max] [diameter]	20 mm	20 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm	14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in	0.551 in
Thread Length	-	14 mm
Thread Length	-	0.551 in
Thread Size	M32x1.5	M32x1.5
Type	Cable Gland - 90°	Cable Gland - 90°

CABLE GLAND RA 14-20MM M32 ZINC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thread Size	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Length	Thread Length
Jacob GmbH 21.732M	100 °C	-20 C	Cable Gland - 90°	M32x1.5	Locknut, O-Ring, Seal	Zinc, Nickel Plated	0.787 "	20 mm	IP55 - Dust Protected, Water Resistant	14 mm	0.551 in	Silver
Jacob GmbH 21.732PA7035	100 °C	-20 C	Cable Gland - 90°	M32x1.5	Sealing Ring		0.787 "	20 mm	IP55 - Dust Protected, Water Resistant	14 mm	0.551 in	Gray	14 mm	0.551 in
