DD1200S17H4B2BOSA2

Active

Infineon Technologies

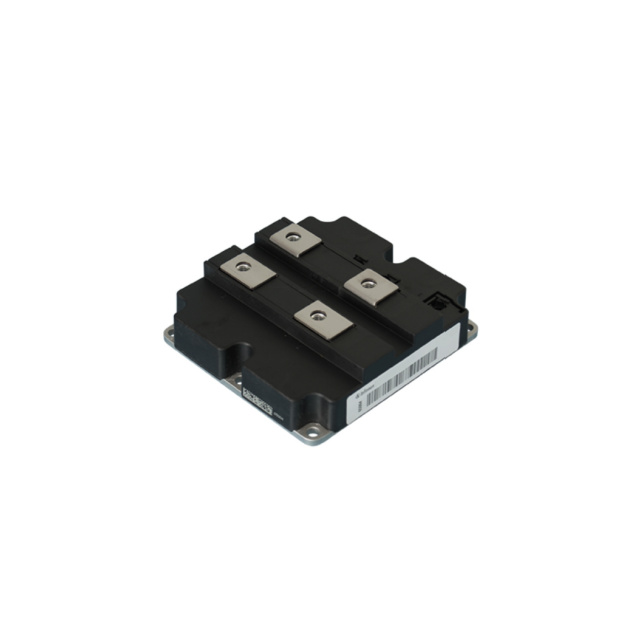

THE DD1200S17H4_B2 IS A DIODES DIODE MODULE IN A IHM B HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 1700 V AND 1200 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MCDS - IH4B 140x130 Al PI +1

DD1200S17H4B2BOSA2

Active

Infineon Technologies

THE DD1200S17H4_B2 IS A DIODES DIODE MODULE IN A IHM B HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 1700 V AND 1200 A.

Deep-Dive with AI

DocumentsDatasheet MCDS - IH4B 140x130 Al PI +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DD1200S17H4B2BOSA2

Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	AG-IHMB130-1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V
Voltage - Forward (Vf) (Max) @ If	2.1 V

DD1200 Series

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Input
Infineon Technologies DD1200S12H4	1.2 kV	AG-IHMB130-2	Standard	150 °C	-40 °C	Module	2 Independent	Chassis Mount	2.35 V	Standard Recovery >500ns	200 mA
Infineon Technologies DD1200S17H4B2BOSA2	1700 V	AG-IHMB130-1	Standard	150 °C	-40 °C	Module	2 Independent	Chassis Mount	2.1 V	Standard Recovery >500ns	200 mA
Infineon Technologies DD1200S12H4HOSA1		Module				Module		Chassis Mount				1200000 W	1200 V	2 Independent	1200 A	2.35 V	Standard
Infineon Technologies DD1200S45KL3B5NOSA1	4500 V	A-IHV130-4	Standard	125 °C	-50 °C	Module	2 Independent	Chassis Mount	3.1 V	Standard Recovery >500ns	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 942.61
		10	$ 909.73

Description

General part information

DD1200 Series

1700 V, 1200 AIHMB130 mm Diode Module with AlSiC base-plate and Emitter Controlled 4 - Diode - The best solution for your traction and industry applications. Predestined to be combined withIGBT4 products.

Documents

Technical documentation and resources

Datasheet

MCDS - IH4B 140x130 Al PI

Material Content Data Sheet

DD1200S17H4_B2 (german/english)

Data Sheets
