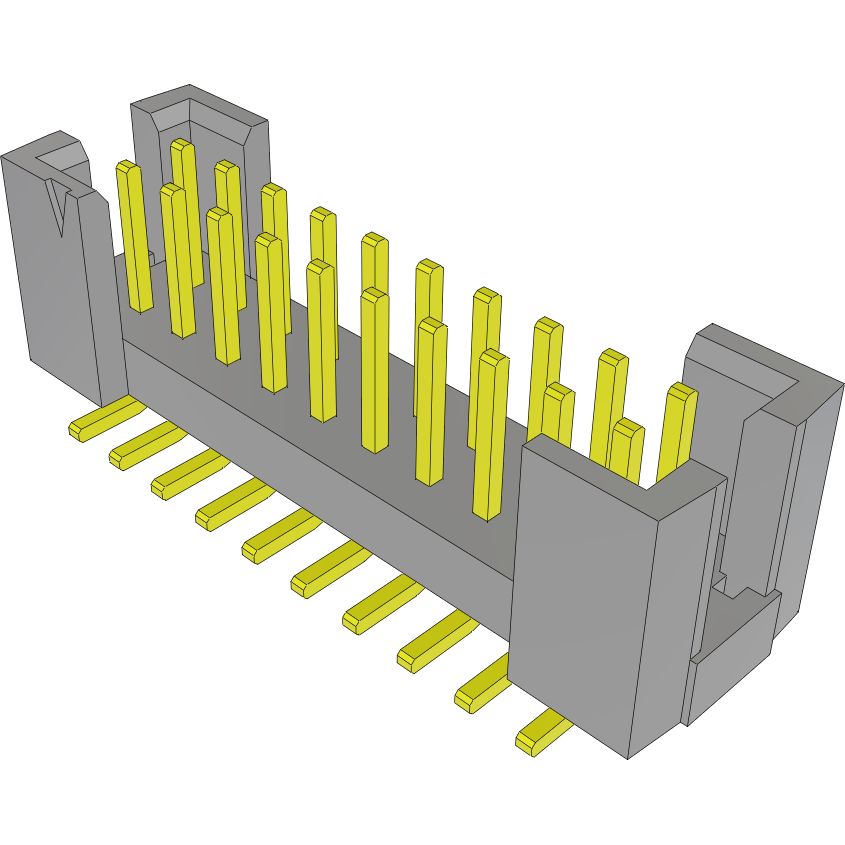

TSSH-110-01-L-DH

Active

Samtec Inc.

CONN SHROUDED HEADER (3 SIDES) HDR 20 POS 2.54MM SOLDER RA SMD TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSSH-110-01-L-DH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 2 Wall
Style	Board to Board, Cable
Termination	Solder

TSSH-110 Series

Headers & Wire Housings .100" End Shrouded Terminal Strip

Part	Contact Material	Contact Finish - Post	Shrouding	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Style	Insulation Height	Insulation Height	Features	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. TSSH-110-01-L-DV-A-P-TR	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable
Samtec Inc. TSSH-110-01-L-DH-TR	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds
Samtec Inc. TSSH-110-01-T-DV-LC	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square			Liquid Crystal Polymer (LCP)	2		-55 °C	105 ░C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Lock End Shrouds
Samtec Inc. TSSH-110-01-L-D	Phosphor Bronze	Tin	Shrouded - 3 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Through Hole	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			End Shrouds	0.106 in	2.69 mm
Samtec Inc. TSSH-104-01-L-D-RA	Phosphor Bronze	Tin	Shrouded - 3 Wall	Push-Pull	Header	0.1 in	2.54 mm	8	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Through Hole Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds			0.09 "	2.29 mm
Samtec Inc. TSSH-105-01-S-DH-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	10	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	Board Guide End Shrouds
Samtec Inc. TSSH-110-01-S-DV-LC	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Lock End Shrouds
Samtec Inc. TSSH-110-01-S-DV-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Guide End Shrouds
Samtec Inc. TSSH-110-01-T-DH-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square			Liquid Crystal Polymer (LCP)	2		-55 °C	105 ░C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	Board Guide End Shrouds
Samtec Inc. TSSH-110-01-L-DH	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds
