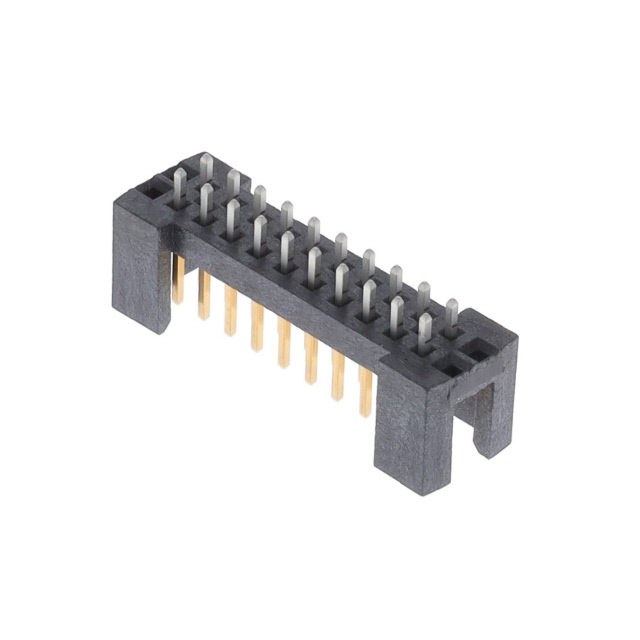

TSSH-110-01-L-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSSH-105-01-L-D Datasheet 02 Datasheet +1

TSSH-110-01-L-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsTSSH-105-01-L-D Datasheet 02 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSSH-110-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 3 Wall
Style	Board to Board, Cable
Termination	Solder

TSSH-110 Series

Headers & Wire Housings .100" End Shrouded Terminal Strip

Part	Contact Material	Contact Finish - Post	Shrouding	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Style	Insulation Height	Insulation Height	Features	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. TSSH-110-01-L-DV-A-P-TR	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable
Samtec Inc. TSSH-110-01-L-DH-TR	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds
Samtec Inc. TSSH-110-01-T-DV-LC	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square			Liquid Crystal Polymer (LCP)	2		-55 °C	105 ░C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Lock End Shrouds
Samtec Inc. TSSH-110-01-L-D	Phosphor Bronze	Tin	Shrouded - 3 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Through Hole	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			End Shrouds	0.106 in	2.69 mm
Samtec Inc. TSSH-104-01-L-D-RA	Phosphor Bronze	Tin	Shrouded - 3 Wall	Push-Pull	Header	0.1 in	2.54 mm	8	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Through Hole Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds			0.09 "	2.29 mm
Samtec Inc. TSSH-105-01-S-DH-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	10	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	Board Guide End Shrouds
Samtec Inc. TSSH-110-01-S-DV-LC	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Lock End Shrouds
Samtec Inc. TSSH-110-01-S-DV-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount	2.54 mm	0.1 in	0.35 in	8.89 mm	Black	Male Pin	6.1 mm	0.24 in	UL94 V-0	Board to Board Cable			Board Guide End Shrouds
Samtec Inc. TSSH-110-01-T-DH-A	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square			Liquid Crystal Polymer (LCP)	2		-55 °C	105 ░C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	Board Guide End Shrouds
Samtec Inc. TSSH-110-01-L-DH	Phosphor Bronze	Tin	Shrouded - 2 Wall	Push-Pull	Header	0.1 in	2.54 mm	20	All	Solder	Square	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	Gold	-55 °C	125 °C	Surface Mount Right Angle	2.54 mm	0.1 in			Black	Male Pin	5.84 mm	0.23 in	UL94 V-0	Board to Board Cable	7.37 mm	0.29 in	End Shrouds

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.10
		50	$ 2.53
		100	$ 2.14
		500	$ 1.91
		1000	$ 1.77

Description

General part information

TSSH-110 Series

Headers & Wire Housings .100" End Shrouded Terminal Strip

Documents

Technical documentation and resources

TSSH-105-01-L-D Datasheet 02

Datasheet
