SN74AHC541PW

Obsolete

Texas Instruments

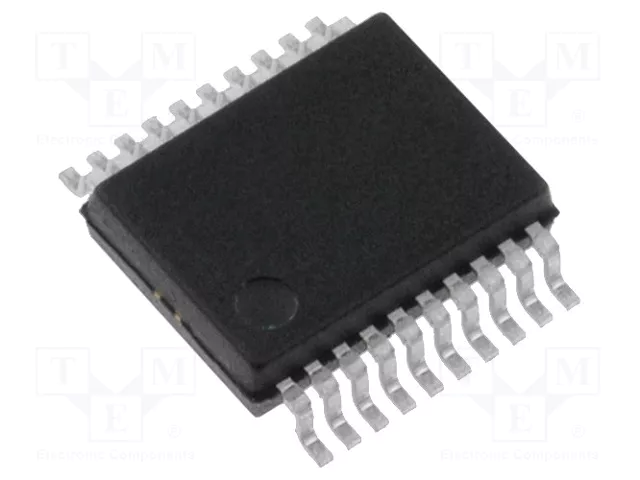

IC: DIGITAL; BUFFER,NON-INVERTING,LINE DRIVER; CH: 8; CMOS; SMD

Find alt

Alpha

SN74AHC541PW

Obsolete

Texas Instruments

IC: DIGITAL; BUFFER,NON-INVERTING,LINE DRIVER; CH: 8; CMOS; SMD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

74AHC541 Series

The SNx4AHC541 octal buffers and drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.

Technical Specifications

Parameters and characteristics for this part

Specification	SN74AHC541PW

Current - Output High	8 mA
Current - Output Low	8 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	8 bits
Number of Elements	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	3-State
Package Length	0.173 in
Package Name	20-TSSOP
Package Width	4.4 mm
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	2 V

74AHC541 Series

Part	Package Length	Package Name	Package Width	Logic Type	Number of Elements	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output Low	Current - Output High	Number of Bits per Element	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type	Qualification	Grade
Texas Instruments SN74AHC541PWG4	0.173 in	20-TSSOP	4.4 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541PW	0.173 in	20-TSSOP	4.4 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541DBR	0.209 in	20-SSOP	5.3 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541DWRE4	0.295 in	20-SOIC	7.5 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541QPWRG4Q1	0.173 in	20-TSSOP	4.4 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State	AEC-Q100	Automotive
Texas Instruments SN74AHC541DGVR	0.173 in	20-TFSOP 20-TVSOP	4.4 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541DW	0.295 in	20-SOIC	7.5 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541NSR	0.209 in	20-SO 20-SOIC	5.3 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541DBRG4	0.209 in	20-SSOP	5.3 mm	Buffer Non-Inverting	1	125 °C	-40 °C	8 mA	8 mA	8 bits	Surface Mount	5.5 V	2 V	3-State
Texas Instruments SN74AHC541NS
