580-M09-103L002

Active

MH Connectors

CONN MICRO-D MALE 9P SC 30U"

Search across all available documentation for this part.

Active

MH Connectors

CONN MICRO-D MALE 9P SC 30U"

Technical Specifications

Parameters and characteristics for this part

Specification	580-M09-103L002

Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Voltage Rating	60 VDC
Wire Gauge	26 AWG

Part	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Number of Rows	Shell Material, Finish	Features	Voltage Rating	Termination	Current Rating (Amps)	Contact Material	Material Flammability Rating	Flange Feature	Dielectric Material	Connector Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Color	Connector Style	Wire Gauge
MH Connectors 580-M09-213L002	Panel Mount Through Hole	0.043	0.05	9	2	Nickel Plated Zinc Alloy	Shielded	60 VDC	Solder	2 A	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	Receptacle Female Sockets	Gold	125 °C	-40 °C	0.76 Ám	30 Áin	Signal	Black	D-Type Micro-D
MH Connectors 580-M09-113L002	Panel Mount Through Hole	0.043	0.05	9	2	Nickel Plated Zinc Alloy	Shielded	60 VDC	Solder	2 A	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	Male Pins Plug	Gold	125 °C	-40 °C	0.76 Ám	30 Áin	Signal	Black	D-Type Micro-D
MH Connectors 580-M09-103L002		0.043	0.05	9	2	Nickel Plated Zinc Alloy	Shielded	60 VDC		2 A	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	Male Pins Plug	Gold	125 °C	-40 °C	0.76 Ám	30 Áin	Signal	Black	D-Type Micro-D	26 AWG
MH Connectors 580-M09-203L002		0.043	0.05	9	2	Nickel Plated Zinc Alloy	Shielded	60 VDC		2 A	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	Receptacle Female Sockets	Gold	125 °C	-40 °C	0.76 Ám	30 Áin	Signal	Black	D-Type Micro-D	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

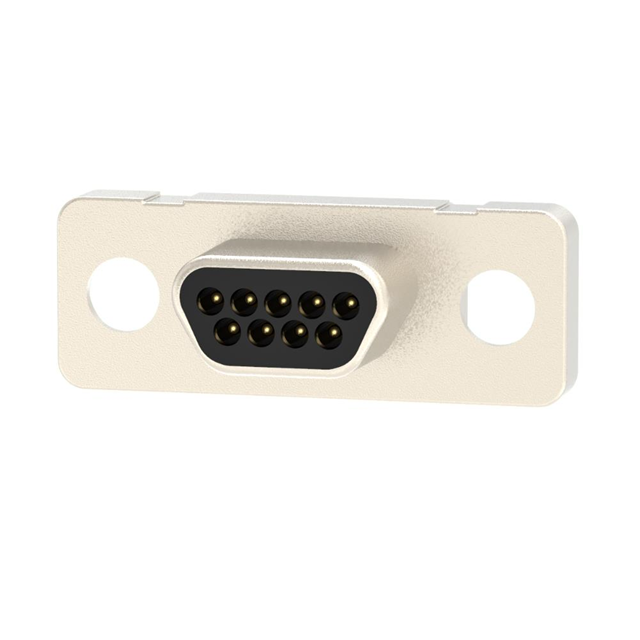

9 Position D-Type, Micro-D Plug, Male Pins Connector
