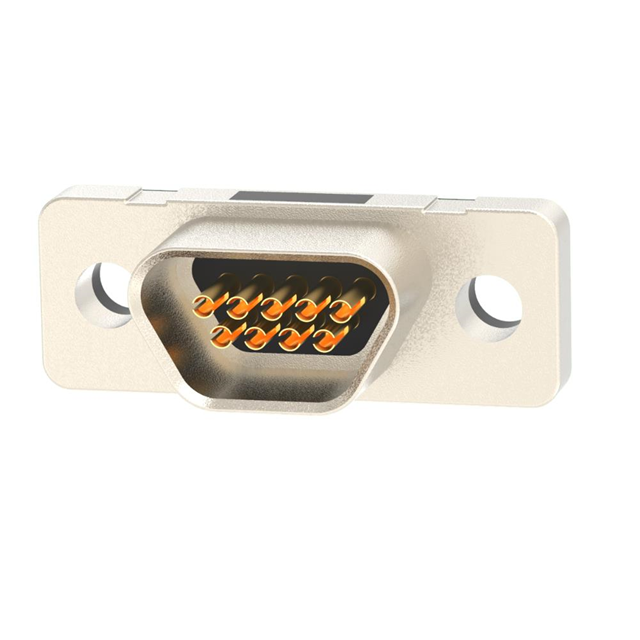

580-M09-203L002
ActiveMH Connectors
CONN MICRO-D FEMALE 9P SC 30U"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
580-M09-203L002
ActiveMH Connectors
CONN MICRO-D FEMALE 9P SC 30U"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 580-M09-203L002 |
|---|---|
| Color | Black |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Zinc Alloy |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Voltage Rating | 60 VDC |
| Wire Gauge | 26 AWG |
580-M09 Series
| Part | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Number of Rows | Shell Material, Finish | Features | Voltage Rating | Termination | Current Rating (Amps) | Contact Material | Material Flammability Rating | Flange Feature | Dielectric Material | Connector Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Color | Connector Style | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Panel Mount Through Hole | 0.043 | 0.05 | 9 | 2 | Nickel Plated Zinc Alloy | Shielded | 60 VDC | Solder | 2 A | Brass | UL94 V-0 | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Receptacle Female Sockets | Gold | 125 °C | -40 °C | 0.76 Ám | 30 Áin | Signal | Black | D-Type Micro-D | |
MH Connectors | Panel Mount Through Hole | 0.043 | 0.05 | 9 | 2 | Nickel Plated Zinc Alloy | Shielded | 60 VDC | Solder | 2 A | Brass | UL94 V-0 | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Male Pins Plug | Gold | 125 °C | -40 °C | 0.76 Ám | 30 Áin | Signal | Black | D-Type Micro-D | |
MH Connectors | 0.043 | 0.05 | 9 | 2 | Nickel Plated Zinc Alloy | Shielded | 60 VDC | 2 A | Brass | UL94 V-0 | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Male Pins Plug | Gold | 125 °C | -40 °C | 0.76 Ám | 30 Áin | Signal | Black | D-Type Micro-D | 26 AWG | ||
MH Connectors | 0.043 | 0.05 | 9 | 2 | Nickel Plated Zinc Alloy | Shielded | 60 VDC | 2 A | Brass | UL94 V-0 | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Receptacle Female Sockets | Gold | 125 °C | -40 °C | 0.76 Ám | 30 Áin | Signal | Black | D-Type Micro-D | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 33.04 | |
| 10 | $ 25.51 | |||
| 25 | $ 23.12 | |||
| 40 | $ 22.01 | |||
| 80 | $ 20.50 | |||
| 230 | $ 18.47 | |||
| 440 | $ 17.37 | |||
Description
General part information
580-M09 Series
9 Position D-Type, Micro-D Receptacle, Female Sockets Connector
