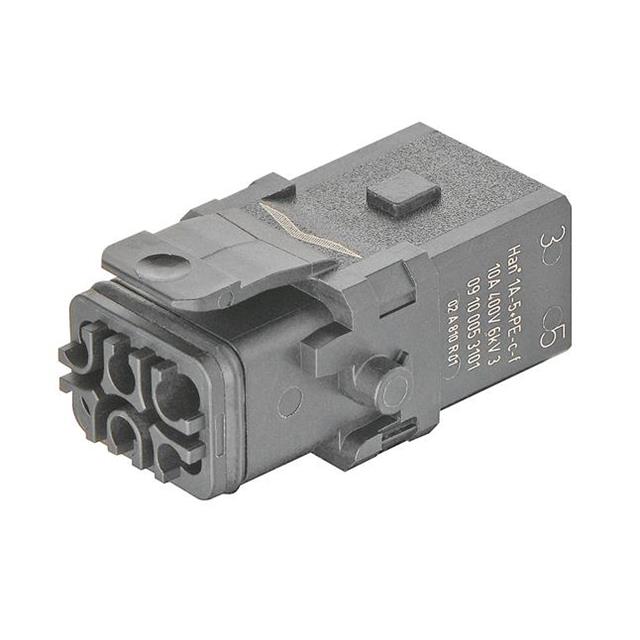

09100053101

Active

HARTING

1A 5+PE FEM CRIMP INSERT SLATCH

Search across all available documentation for this part.

Active

HARTING

1A 5+PE FEM CRIMP INSERT SLATCH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Black 5+Ground Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09100053101	09100053 Series

Color	Black	Black
Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	Han® D	Han® D
Current Rating (Amps)	10 A	10 A
Gender	Female	Male, Female
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	5+Ground	5+Ground
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Crimp	Crimp
Voltage Rating	400 V	400 V

HEAVY DUTY CONNECTOR, HAN SERIES, INSERT, 5+PE CONTACTS, 1A, PLUG, CRIMP PIN

Part	Material Flammability Rating	Contact Type	Number of Positions	Size	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current Rating (Amps)	Voltage Rating	Connector Type	Gender	Termination Style
HARTING 09100053006	UL94 V-0	Han® D	5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V	Insert without Contacts	Male	Crimp
HARTING 09100053000	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Male	Crimp
HARTING 09100053101	UL94 V-0	Han® D	5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V	Insert without Contacts	Female	Crimp
HARTING 09100053100	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Female	Crimp
HARTING 09100053105	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Female	Crimp
HARTING 09100053005	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Male	Crimp
