09100053100

Obsolete

HARTING

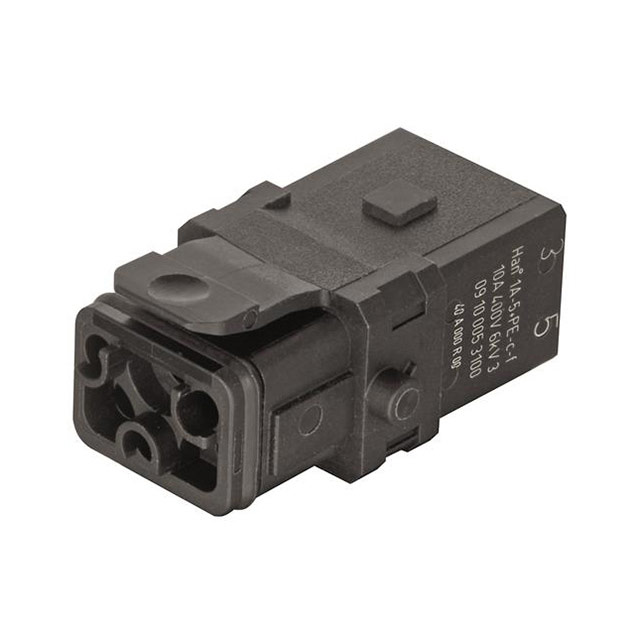

1A 5+PE FEMALE CRIMP INSERT WITH

Search across all available documentation for this part.

Obsolete

HARTING

1A 5+PE FEMALE CRIMP INSERT WITH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Insert Black 5+Ground Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09100053100	09100053 Series

Color	Black	Black
Connector Type	-	Insert without Contacts
Contact Type	-	Han® D
Current Rating (Amps)	10 A	10 A
Gender	Female	Male, Female
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	5+Ground	5+Ground
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Crimp	Crimp
Voltage Rating	400 V	400 V

HEAVY DUTY CONNECTOR, HAN SERIES, INSERT, 5+PE CONTACTS, 1A, PLUG, CRIMP PIN

Part	Material Flammability Rating	Contact Type	Number of Positions	Size	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current Rating (Amps)	Voltage Rating	Connector Type	Gender	Termination Style
HARTING 09100053006	UL94 V-0	Han® D	5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V	Insert without Contacts	Male	Crimp
HARTING 09100053000	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Male	Crimp
HARTING 09100053101	UL94 V-0	Han® D	5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V	Insert without Contacts	Female	Crimp
HARTING 09100053100	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Female	Crimp
HARTING 09100053105	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Female	Crimp
HARTING 09100053005	UL94 V-0		5+Ground	1 A	Polyamide (PA), Nylon	-30 ░C	90 °C	Black	10 A	400 V		Male	Crimp
