C4PC,BK

Active

Serpac

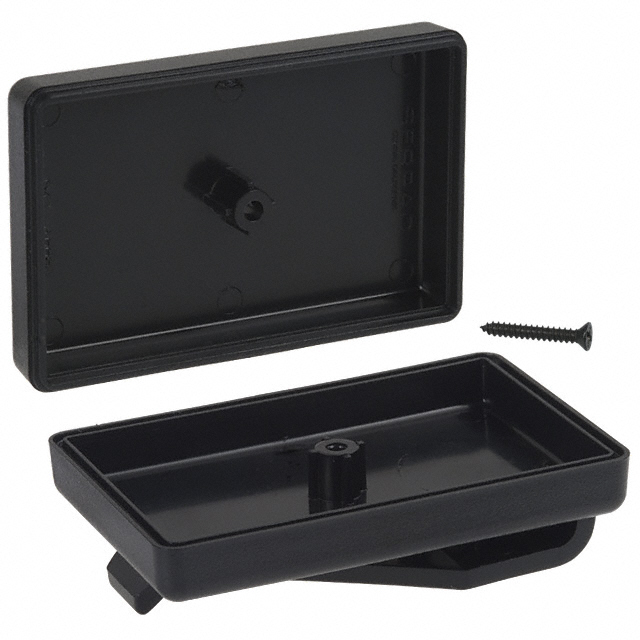

BOX ABS BLACK 2.13"L X 1.38"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 2.13"L X 1.38"W

Technical Specifications

Parameters and characteristics for this part

Specification	C4PC,BK

Area (L x W)	19 cm˛
Area (L x W)	2.94 in˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	0.58 in
Height [z]	14.73 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.13 in
Size / Dimension [x]	54.1 mm
Size / Dimension [y]	1.38 in
Size / Dimension [y]	35.05 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.029 lb
Weight	13.15 g

Part	Features	Material Flammability Rating	Ratings	Container Type	Weight	Weight	Height [z]	Height [z]	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Color	Design	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]
Serpac C4PC,BK	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm	19 cm˛	2.94 in˛	Black	Hand Held Split Sides	1.52 mm	0.06 in
Serpac C4PC,AL	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm			Almond	Hand Held Split Sides	1.52 mm	0.06 in	19 cm²	2.94 in²
Serpac C4PC,GY	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm	19 cm˛	2.94 in˛	Gray	Hand Held Split Sides	1.52 mm	0.06 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 2.130" L x 1.380" W (54.10mm x 35.05mm) X 0.580" (14.73mm)

Technical documentation and resources

No documents available
