C4PC,AL

Active

Serpac

BOX ABS ALMOND 2.13"L X 1.38"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 2.13"L X 1.38"W

Technical Specifications

Parameters and characteristics for this part

Specification	C4PC,AL

Area (L x W) [custom]	19 cm²
Area (L x W) [custom]	2.94 in²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	0.58 in
Height [z]	14.73 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.13 in
Size / Dimension [x]	54.1 mm
Size / Dimension [y]	1.38 in
Size / Dimension [y]	35.05 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.029 lb
Weight	13.15 g

Part	Features	Material Flammability Rating	Ratings	Container Type	Weight	Weight	Height [z]	Height [z]	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Color	Design	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]
Serpac C4PC,BK	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm	19 cm˛	2.94 in˛	Black	Hand Held Split Sides	1.52 mm	0.06 in
Serpac C4PC,AL	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm			Almond	Hand Held Split Sides	1.52 mm	0.06 in	19 cm²	2.94 in²
Serpac C4PC,GY	Pocket Clip	UL94 HB	IP40	Box	0.029 lb	13.15 g	0.58 in	14.73 mm	Plastic ABS	1.38 in	2.13 in	35.05 mm	54.1 mm	19 cm˛	2.94 in˛	Gray	Hand Held Split Sides	1.52 mm	0.06 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.82

General part information

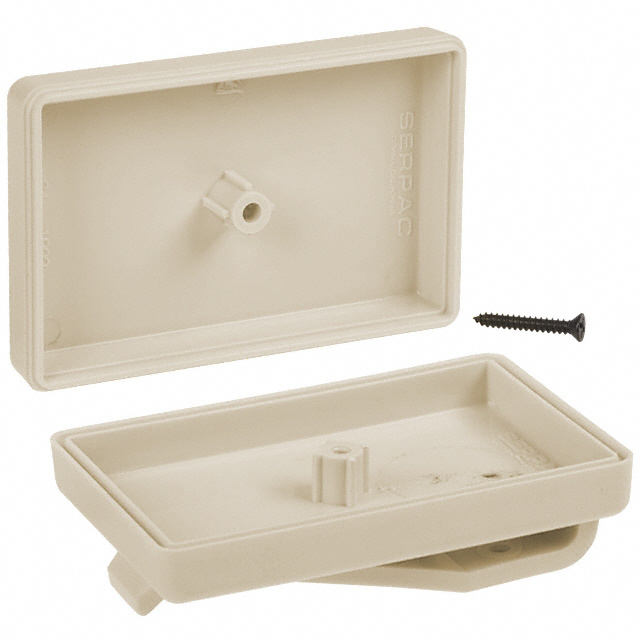

Box Plastic, ABS Almond Hand Held, Split Sides 2.130" L x 1.380" W (54.10mm x 35.05mm) X 0.580" (14.73mm)

Technical documentation and resources

No documents available
