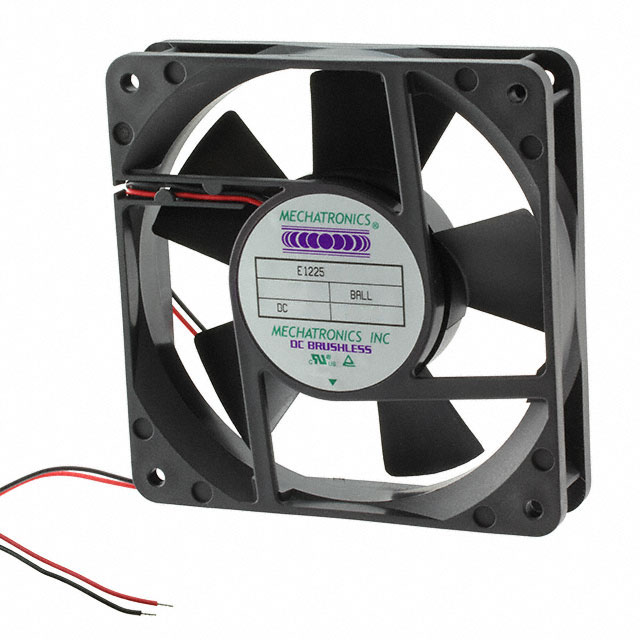

E1225H12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 120X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs DC Fan, Blower Lead Wire Spec +2

E1225H12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 120X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs DC Fan, Blower Lead Wire Spec +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.97
		10	$ 15.24
		25	$ 14.33
		50	$ 13.79
		100	$ 12.70
		250	$ 11.88
		500	$ 11.70

Description

General part information

E1225 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 82.0 CFM (2.30m³/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

DC Fan, Blower Lead Wire Spec

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	E1225H12B-FSR	E1225 Series

Air Flow	2.3 m³/min	1.23 - 2.6 m³/min
Air Flow	82 CFM	44 - 93 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	385 mA	0.142 - 600 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Locked Rotor Sensor, Speed Sensor (Tach), Thermistor, Conformal Coating, PWM Control
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	40 dB(A)	28 - 44 dB
RPM	2600 RPM	1400 - 3000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	59.8 Pa	22.4 - 69.7 Pa
Static Pressure	0.24 in H2O	0.09 - 0.28 in H2O
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	5 - 24 VDC
Weight	196.86 g	196.86 - 197.77 g
Weight	0.434 lb	0.434 - 0.436 lb
Width [y]	25 mm	25 mm

Part	Material - Blade	Approval Agency	Width [y]	Termination	Weight	Weight	Fan Type	Features	Air Flow	Air Flow	Voltage - Rated	Bearing Type	RPM	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Noise	Current Rating (Amps)
Mechatronics Fan Group E1225M24B-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP)	67 CFM	1.88 m³/min	24 VDC	Ball	2200 RPM	120 mm	120 mm	44.8 Pa	0.18 in H2O	36 dB
Mechatronics Fan Group E1225M05B2-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	3 Wire Leads	197.77 g	0.436 lb	Tubeaxial	Locked Rotor Sensor, Thermal Overload Protector (TOP)	67 CFM	1.88 m³/min	5 V	Ball	2200 RPM	120 mm	120 mm	45 Pa	0.18 in H2O	36 dB	600 mA
Mechatronics Fan Group E1225L12B-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP)	55 CFM	1.54 mł/min	12 VDC	Ball	1800 RPM	120 mm	120 mm	29.9 Pa	0.12 in H2O	32 dB	0.142 A
Mechatronics Fan Group E1225E12B1+3-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	3 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor	93 CFM	2.6 m³/min	12 VDC	Ball	3000 RPM	120 mm	120 mm	69.7 Pa	0.28 in H2O	44 dB	580 mA
Mechatronics Fan Group E1225E12B3-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP), Thermistor	93 CFM	2.6 m³/min	12 VDC	Ball	3000 RPM	120 mm	120 mm	69.7 Pa	0.28 in H2O	44 dB	580 mA
Mechatronics Fan Group E1225H12B-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP)	82 CFM	2.3 m³/min	12 VDC	Ball	2600 RPM	120 mm	120 mm	59.8 Pa	0.24 in H2O	40 dB(A)	385 mA
Mechatronics Fan Group E1225M05B-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP)	67 CFM	1.88 m³/min	5 V	Ball	2200 RPM	120 mm	120 mm	44.8 Pa	0.18 in H2O	36 dB	600 mA
Mechatronics Fan Group E1225L12B-FSR-CC	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	197.77 g	0.436 lb	Tubeaxial	Conformal Coating, Thermal Overload Protector (TOP)	55 CFM	1.54 mł/min	12 VDC	Ball	1800 RPM	120 mm	120 mm	29.9 Pa	0.12 in H2O	32 dB	0.142 A
Mechatronics Fan Group E1225E24B-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	2 Wire Leads	196.86 g	0.434 lb	Tubeaxial	Thermal Overload Protector (TOP)	93 CFM	2.6 m³/min	24 VDC	Ball	3000 RPM	120 mm	120 mm	69.7 Pa	0.28 in H2O	44 dB	0.34 A
Mechatronics Fan Group E1225S05B1-FSR	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	25 mm	3 Wire Leads	197.77 g	0.436 lb	Tubeaxial	Speed Sensor (Tach), Thermal Overload Protector (TOP)	44 CFM	1.23 m³/min	5 V	Ball	1400 RPM	120 mm	120 mm	22.4 Pa	0.09 in H2O	28 dB	0.22 A

Part

Material - Blade

Approval Agency

Width [y]

Termination

Weight

Fan Type

Features

Air Flow

Voltage - Rated

Bearing Type

RPM

Size / Dimension [y]

Size / Dimension [x]

Static Pressure

Noise

Current Rating (Amps)

Mechatronics Fan Group

E1225M24B-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP)

67 CFM

1.88 m³/min

24 VDC

Ball

2200 RPM

120 mm

44.8 Pa

0.18 in H2O

36 dB

Mechatronics Fan Group

E1225M05B2-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

3 Wire Leads

197.77 g

0.436 lb

Tubeaxial

Locked Rotor Sensor, Thermal Overload Protector (TOP)

67 CFM

1.88 m³/min

5 V

Ball

2200 RPM

120 mm

45 Pa

0.18 in H2O

36 dB

600 mA

Mechatronics Fan Group

E1225L12B-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP)

55 CFM

1.54 mł/min

12 VDC

Ball

1800 RPM

120 mm

29.9 Pa

0.12 in H2O

32 dB

0.142 A

Mechatronics Fan Group

E1225E12B1+3-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

3 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor

93 CFM

2.6 m³/min

12 VDC

Ball

3000 RPM

120 mm

69.7 Pa

0.28 in H2O

44 dB

580 mA

Mechatronics Fan Group

E1225E12B3-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP), Thermistor

93 CFM

2.6 m³/min

12 VDC

Ball

3000 RPM

120 mm

69.7 Pa

0.28 in H2O

44 dB

580 mA

Mechatronics Fan Group

E1225H12B-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP)

82 CFM

2.3 m³/min

12 VDC

Ball

2600 RPM

120 mm

59.8 Pa

0.24 in H2O

40 dB(A)

385 mA

Mechatronics Fan Group

E1225M05B-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP)

67 CFM

1.88 m³/min

5 V

Ball

2200 RPM

120 mm

44.8 Pa

0.18 in H2O

36 dB

600 mA

Mechatronics Fan Group

E1225L12B-FSR-CC

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

197.77 g

0.436 lb

Tubeaxial

Conformal Coating, Thermal Overload Protector (TOP)

55 CFM

1.54 mł/min

12 VDC

Ball

1800 RPM

120 mm

29.9 Pa

0.12 in H2O

32 dB

0.142 A

Mechatronics Fan Group

E1225E24B-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

2 Wire Leads

196.86 g

0.434 lb

Tubeaxial

Thermal Overload Protector (TOP)

93 CFM

2.6 m³/min

24 VDC

Ball

3000 RPM

120 mm

69.7 Pa

0.28 in H2O

44 dB

0.34 A

Mechatronics Fan Group

E1225S05B1-FSR

Polybutylene Terephthalate (PBT)

CE, cUL, TUV, UL

25 mm

3 Wire Leads

197.77 g

0.436 lb

Tubeaxial

Speed Sensor (Tach), Thermal Overload Protector (TOP)

44 CFM

1.23 m³/min

5 V

Ball

1400 RPM

120 mm

22.4 Pa

0.09 in H2O

28 dB

0.22 A
