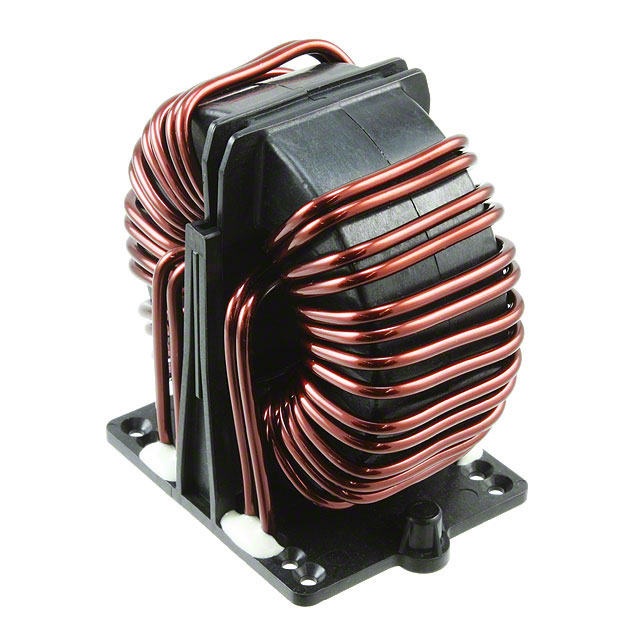

RB8522-50-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 750UH 50A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB8522-50-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 750UH 50A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB8522-50-0M8 |
|---|---|
| Current Rating (Max) [Max] | 50 A |
| DC Resistance (DCR) (Max) | 1.7 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 3.15 in |
| Height (Max) [Max] | 80 mm |
| Inductance @ Frequency | 750 µH, 400 Hz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8 Leads |
| Package / Case | Vertical |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [y] | 1.988 in |
| Size / Dimension [y] | 50.5 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.95 | |
| 10 | $ 36.87 | |||
Description
General part information
RB8522 Series
750 µH @ 400 Hz 2 Line Common Mode Choke Through Hole 50A DCR 1.7mOhm (Typ)
