826632-1

Active

TE Connectivity AMP Connectors

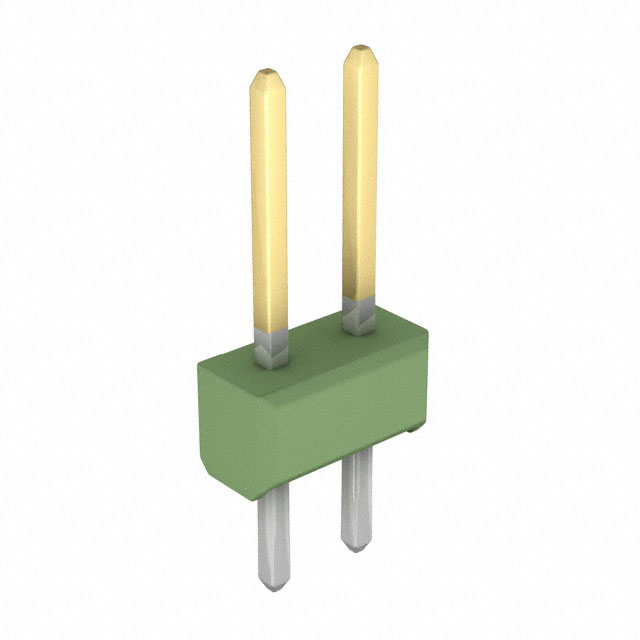

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826632-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.42
		100	$ 0.35
		500	$ 0.31
		1000	$ 0.29
		5000	$ 0.25
		10000	$ 0.24

Description

General part information

826632 Series

Connector Header Through Hole 2 position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826632-1	826632 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 80
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826632 Series

CONN HEADER VERT 26POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Contact Material	Contact Finish - Post	Insulation Material	Style	Connector Type	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Current Rating (Amps)	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Shrouding	Contact Type	Material Flammability Rating	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Fastening Type
TE Connectivity AMP Connectors 1-826632-3	2.54 mm	0.1 in	3 µm	118.1 µin	0.099 µm	3.9 µin	Green	3.2 mm	0.126 in	Brass	Tin	Polybutylene Terephthalate (PBT)	Board to Board, Cable	Breakaway, Header	Through Hole	Solder	0.1 in	2.54 mm	-65 ░C	105 ░C	All	5 A	2	6.7 mm	0.264 in	Square	Unshrouded	Male Pin	UL94 V-0	Gold	12.7 mm	0.5 "	26	Push-Pull
TE Connectivity AMP Connectors 826632-1	2.54 mm	0.1 in	3 µm	118.1 µin	0.099 µm	3.9 µin	Green	3.2 mm	0.126 in	Brass	Tin	Polybutylene Terephthalate (PBT)	Board to Board, Cable	Breakaway, Header	Through Hole	Solder			-65 ░C	105 ░C	All	5 A	2	6.7 mm	0.264 in	Square	Unshrouded	Male Pin	UL94 V-0	Gold	12.7 mm	0.5 "	2	Push-Pull
