826632-4
ActiveTE Connectivity AMP Connectors

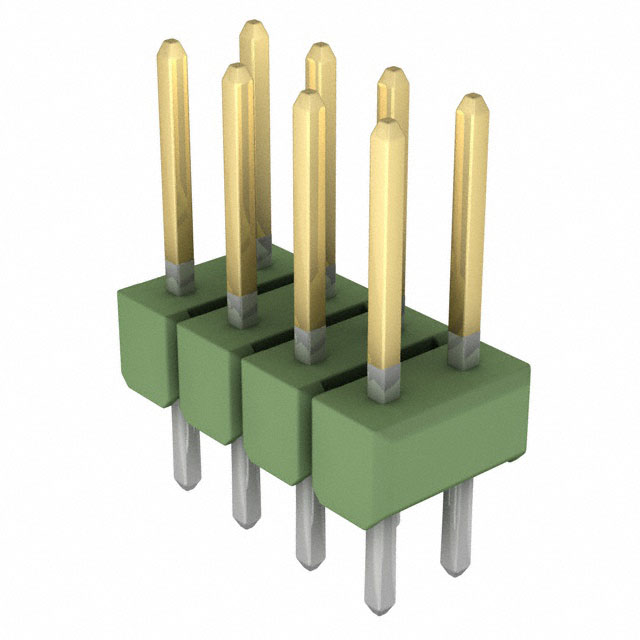

CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
826632-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 826632-4 | 826632 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 2 - 80 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 12.7 mm | 12.7 mm |
| Overall Contact Length | 0.5 " | 0.5 " |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826632 Series
CONN HEADER VERT 26POS 2.54MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Contact Length - Post | Contact Length - Post [x] | Contact Material | Contact Finish - Post | Insulation Material | Style | Connector Type | Mounting Type | Termination | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Current Rating (Amps) | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Shape | Shrouding | Contact Type | Material Flammability Rating | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Number of Positions | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-826632-3 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 26 | Push-Pull |
TE Connectivity AMP Connectors 826632-1 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 2 | Push-Pull | ||
TE Connectivity AMP Connectors 826632-3 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 6 | Push-Pull |
TE Connectivity AMP Connectors 1-826632-0 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 20 | Push-Pull |
TE Connectivity AMP Connectors 2-826632-0 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 40 | Push-Pull |
TE Connectivity AMP Connectors 3-826632-6 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 72 | Push-Pull |
TE Connectivity AMP Connectors 4-826632-0 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 80 | Push-Pull |
TE Connectivity AMP Connectors 826632-4 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 8 | Push-Pull |
TE Connectivity AMP Connectors 826632-7 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 14 | Push-Pull |
TE Connectivity AMP Connectors 826632-6 | 2.54 mm | 0.1 in | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Green | 3.2 mm | 0.126 in | Brass | Tin | Polybutylene Terephthalate (PBT) | Board to Board, Cable | Breakaway, Header | Through Hole | Solder | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | All | 5 A | 2 | 6.7 mm | 0.264 in | Square | Unshrouded | Male Pin | UL94 V-0 | Gold | 12.7 mm | 0.5 " | 12 | Push-Pull |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.79 | |||
| 504 | $ 0.69 | |||
| 1008 | $ 0.66 | |||
| 5040 | $ 0.58 | |||
| 10080 | $ 0.54 | |||
Description
General part information
826632 Series
Connector Header Through Hole 8 position 0.100" (2.54mm)
