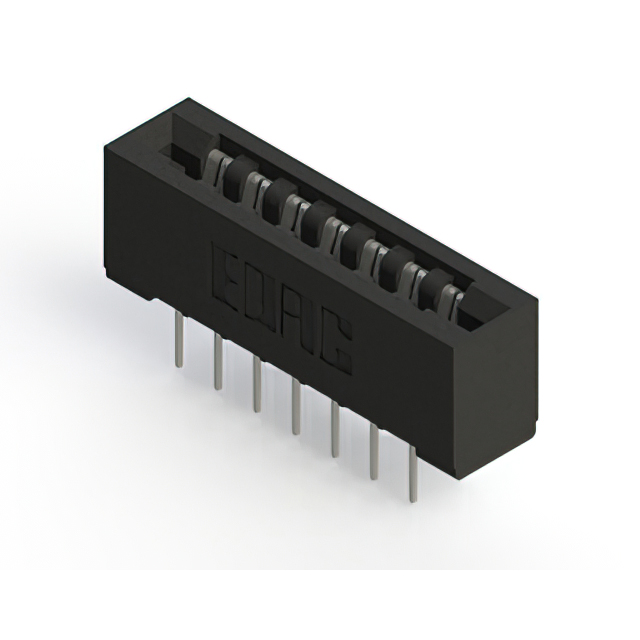

857-014-424-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-014-424-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-014-424-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-014 Series

...

Part	Mounting Type	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Type	Gender	Number of Positions/Bay/Row [custom]	Number of Rows	Termination	Pitch [x]	Pitch [x]	Material - Insulation	Termination Rows	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Read Out	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Features
EDAC Inc. 857-014-540-203	Through Hole	14	Copper Alloy	10 Áin	0.25 Ám	Non Specified - Dual Edge	Female	7	2	Wire Wrap	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Black	Dual	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-558-103	Through Hole Right Angle	14	Copper Alloy	10 Áin	0.25 Ám	Non Specified - Single Edge	Female	14	1	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Black	Single	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-424-201	Through Hole	14	Copper Alloy			Non Specified - Dual Edge	Female	7	2	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in				Black	Dual	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-422-212	Through Hole	14	Copper Alloy			Non Specified - Dual Edge	Female	7	2	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded		Black	Dual	Semi Bellows	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 857-014-522-201	Through Hole	14	Copper Alloy	10 Áin	0.25 Ám	Non Specified - Dual Edge	Female	7	2	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in				Black	Dual	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-422-201	Through Hole	14	Copper Alloy			Non Specified - Dual Edge	Female	7	2	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in				Black	Dual	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-425-103	Through Hole	14	Copper Alloy			Non Specified - Single Edge	Female	14	1	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Black	Single	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-456-212	Board Edge Straddle Mount	14	Copper Alloy			Non Specified - Dual Edge	Female	7	2	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded		Black	Dual	Semi Bellows	125 °C	-40 °C	3.25 mm	0.128 in	Card Extender
EDAC Inc. 857-014-442-202	Through Hole	14	Copper Alloy			Non Specified - Dual Edge	Female	7	2	Wire Wrap	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Black	Dual	Semi Bellows	125 °C	-40 °C
EDAC Inc. 857-014-531-108	Through Hole	14	Copper Alloy	10 Áin	0.25 Ám	Non Specified - Single Edge	Female	14	1	Solder	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Black	Single	Semi Bellows	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 59.77
Newark	Each	1	$ 71.73
		100	$ 51.68
		250	$ 40.50
		500	$ 28.91
		1000	$ 16.13

Description

General part information

857-014 Series

14 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
