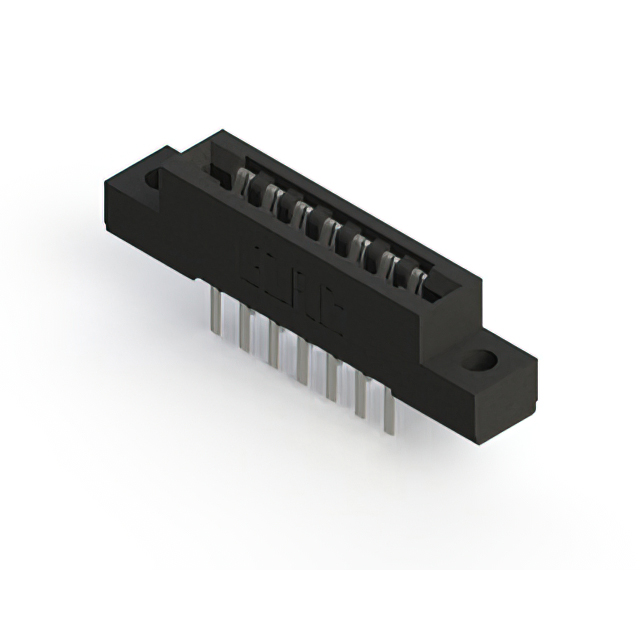

857-014-442-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-014-442-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
857-014 Series
...
| Part | Mounting Type | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Card Type | Gender | Number of Positions/Bay/Row [custom] | Number of Rows | Termination | Pitch [x] | Pitch [x] | Material - Insulation | Termination Rows | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Read Out | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 14 | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 7 | 2 | Wire Wrap | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Black | Dual | Semi Bellows | 125 °C | -40 °C | |||
EDAC Inc. | Through Hole Right Angle | 14 | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 14 | 1 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Black | Single | Semi Bellows | 125 °C | -40 °C | |||
EDAC Inc. | Through Hole | 14 | Copper Alloy | Non Specified - Dual Edge | Female | 7 | 2 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Dual | Semi Bellows | 125 °C | -40 °C | ||||||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | Non Specified - Dual Edge | Female | 7 | 2 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Black | Dual | Semi Bellows | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 7 | 2 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Dual | Semi Bellows | 125 °C | -40 °C | ||||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | Non Specified - Dual Edge | Female | 7 | 2 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Dual | Semi Bellows | 125 °C | -40 °C | ||||||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | Non Specified - Single Edge | Female | 14 | 1 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 1 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Black | Single | Semi Bellows | 125 °C | -40 °C | |||||
EDAC Inc. | Board Edge Straddle Mount | 14 | Copper Alloy | Non Specified - Dual Edge | Female | 7 | 2 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Black | Dual | Semi Bellows | 125 °C | -40 °C | 3.25 mm | 0.128 in | Card Extender | ||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | Non Specified - Dual Edge | Female | 7 | 2 | Wire Wrap | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Black | Dual | Semi Bellows | 125 °C | -40 °C | |||||
EDAC Inc. | Through Hole | 14 | Copper Alloy | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 14 | 1 | Solder | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Black | Single | Semi Bellows | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-014 Series
14 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
