PJU14126L

Active

Hammond Manufacturing

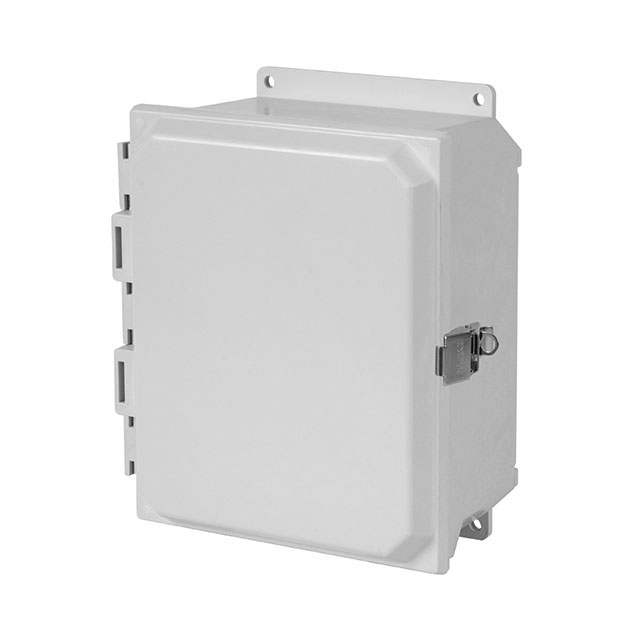

BOX FIBERGLASS 14.5"L X 12.72"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX FIBERGLASS 14.5"L X 12.72"W

Technical Specifications

Parameters and characteristics for this part

Specification	PJU14126L

Area (L x W)	184 in²
Area (L x W)	1187 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Mounting Flange, Snap Latch, PCB Supports
Height [z]	7.01 in
Height [z]	178.05 mm
Material	Fiberglass/Polyester
Ratings	UL-508, NEMA 12, NEMA 3, NEMA 4, NEMA 13, NEMA 4X, IP66, NEMA 1, NEMA 2
Size / Dimension [x]	368.3 mm
Size / Dimension [x]	14.5 in
Size / Dimension [y]	323.09 mm
Size / Dimension [y]	12.72 in
Weight	3.6 kg
Weight	8 lbs

Part	Material	Ratings	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Weight	Weight	Container Type	Area (L x W)	Area (L x W)	Features	Color
Hammond Manufacturing PJU14126CCHF	Fiberglass/Polyester Plastic Polycarbonate	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 4 NEMA 4X UL-508	Hinged Door Lid	368.3 mm	323.09 mm	14.5 in	12.72 in	7.01 in	178.05 mm	3.6 kg	8 lbs	Box	184 in²	1187 cm²	Mounting Flange PCB Supports	Clear Cover/Door Gray
Hammond Manufacturing PJU14126L	Fiberglass/Polyester	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 4 NEMA 4X UL-508	Hinged Door Lid	368.3 mm	323.09 mm	14.5 in	12.72 in	7.01 in	178.05 mm	3.6 kg	8 lbs	Box	184 in²	1187 cm²	Mounting Flange PCB Supports Snap Latch	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 209.34

General part information

Box Fiberglass/Polyester Gray Hinged Door, Lid 14.500" L x 12.720" W (368.30mm x 323.09mm) X 7.010" (178.05mm)

Technical documentation and resources

No documents available
