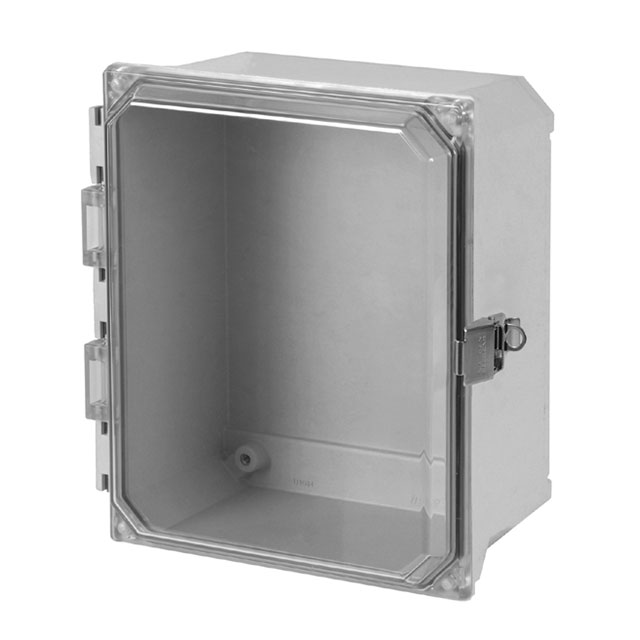

PJU14126CCHF
ActiveHammond Manufacturing
BOX PLASTIC 14.5"L X 12.72"W
Deep-Dive with AI
Search across all available documentation for this part.
PJU14126CCHF
ActiveHammond Manufacturing
BOX PLASTIC 14.5"L X 12.72"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PJU14126CCHF |
|---|---|
| Area (L x W) | 184 in² |
| Area (L x W) | 1187 cm² |
| Color | Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Hinged Door, Lid |
| Features | Mounting Flange, PCB Supports |
| Height [z] | 7.01 in |
| Height [z] | 178.05 mm |
| Material | Polycarbonate, Fiberglass/Polyester, Plastic |
| Ratings | UL-508, NEMA 12, NEMA 3, NEMA 4, NEMA 13, NEMA 4X, IP66, NEMA 1, NEMA 2 |
| Size / Dimension [x] | 368.3 mm |
| Size / Dimension [x] | 14.5 in |
| Size / Dimension [y] | 323.09 mm |
| Size / Dimension [y] | 12.72 in |
| Weight | 3.6 kg |
| Weight | 8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 203.72 | |
Description
General part information
PJU14126 Series
Box Plastic, Fiberglass/Polyester, Polycarbonate Gray, Clear Cover/Door Hinged Door, Lid 14.500" L x 12.720" W (368.30mm x 323.09mm) X 7.010" (178.05mm)
Documents
Technical documentation and resources
No documents available
