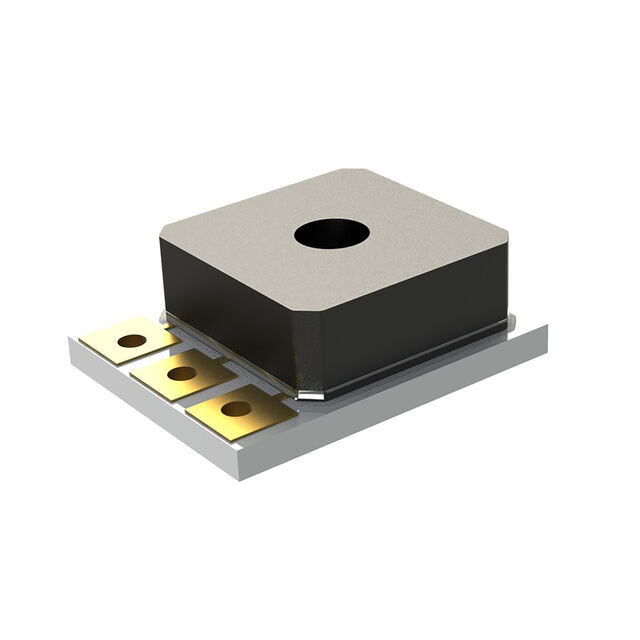

BPS130-HG015P-3S
ActiveBourns Inc.
BOARD MOUNT PRESSURE SENSOR 0PSI TO 15PSI GAGE MEDICAL 3-PIN FRAME/WAFER
Deep-Dive with AI
Search across all available documentation for this part.
BPS130-HG015P-3S
ActiveBourns Inc.
BOARD MOUNT PRESSURE SENSOR 0PSI TO 15PSI GAGE MEDICAL 3-PIN FRAME/WAFER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BPS130-HG015P-3S |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 30 PSI |
| Maximum Pressure [Max] | 206.84 kPa |
| Mounting Type | Through Hole |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Output [Max] | 4.95 V |
| Output [Min] | 0.45 V |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP Module |
| Port Size | 0.122 ", 3.1 mm |
| Port Size | Male - Tube |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.11 | |
| 10 | $ 32.53 | |||
Description
General part information
BPS130 Series
Pressure Sensor 15PSI (103.42kPa) Gauge Male - 0.122" (3.1mm) Tube 0.45 V ~ 4.95 V 3-SIP Module
