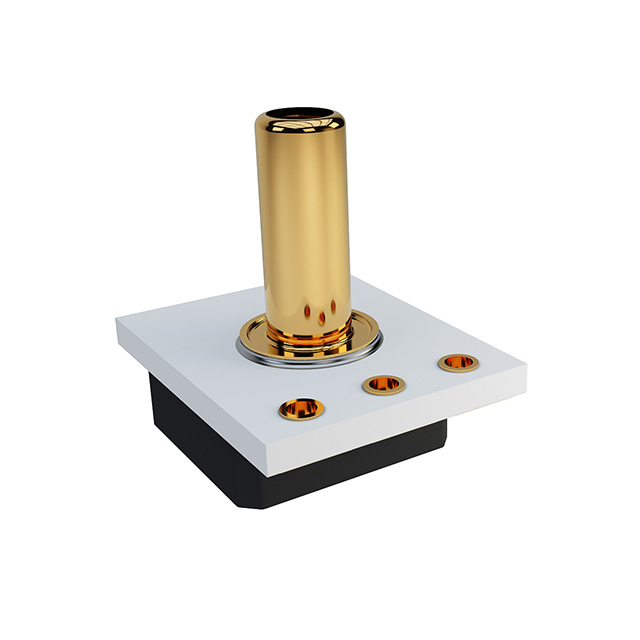

BPS130-HG100P-3S
ActiveBourns Inc.
SENSOR 100PSIG 0.122" 4.95V
Deep-Dive with AI
Search across all available documentation for this part.
BPS130-HG100P-3S
ActiveBourns Inc.
SENSOR 100PSIG 0.122" 4.95V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BPS130-HG100P-3S |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 200 PSI |
| Maximum Pressure [Max] | 1378.95 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Output [Max] | 4.95 V |
| Output [Min] | 0.45 V |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP Module |
| Port Size | 0.122 ", 3.1 mm |
| Port Size | Male - Tube |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 48.02 | |
| 5 | $ 44.25 | |||
| 10 | $ 42.85 | |||
| 25 | $ 41.17 | |||
| 50 | $ 40.03 | |||
| 200 | $ 38.01 | |||
Description
General part information
BPS130 Series
Pressure Sensor 100PSI (689.48kPa) Gauge Male - 0.122" (3.1mm) Tube 0.45 V ~ 4.95 V 3-SIP Module
