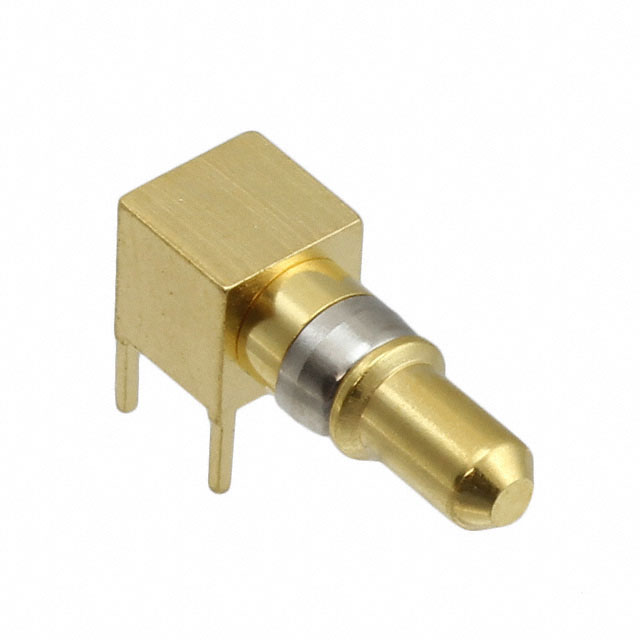

1-1393589-8

Active

TE Connectivity AMP Connectors

CONN PIN COAX GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PIN COAX GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

CONTACT SOCKET POWER 16-18AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Current Rating (Amps)	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish
TE Connectivity AMP Connectors 1-1393589-1	16 AWG	18 AWG	Socket	10 A	Power	39.4 Áin	1 Ám	Solder
TE Connectivity AMP Connectors 2-1393589-0			Pin	10 A	Power	39.4 Áin	1 Ám	Solder	Gold
TE Connectivity AMP Connectors 1393589-9	12 AWG	14 AWG	Socket	20 A	Power	39.4 Áin	1 Ám	Solder
TE Connectivity AMP Connectors 1-1393589-8			Pin	25 A	Power	39.4 Áin	1 Ám	PCB, Solder
TE Connectivity AMP Connectors 3-1393589-5			Pin, Center	10 A	Coaxial	39.4 Áin	1 Ám	PCB, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Power Pin Solder, PCB
