1393589-9

Active

TE Connectivity AMP Connectors

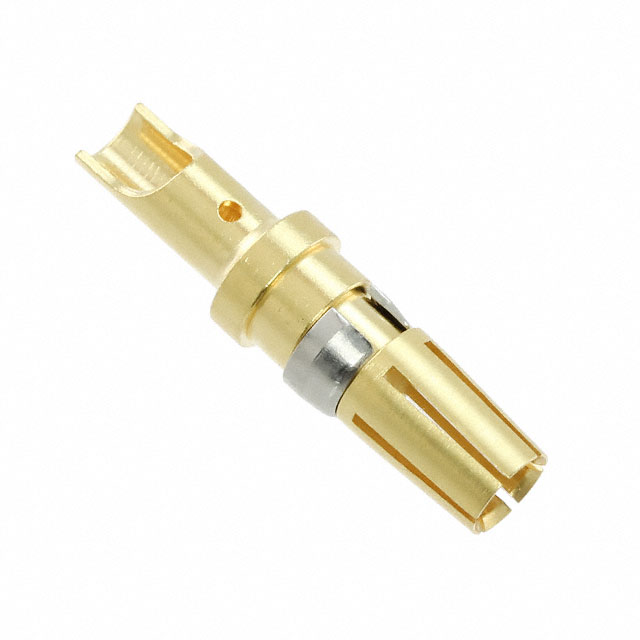

CONTACT SOCKET POWER 12-14AWG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONTACT SOCKET POWER 12-14AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Contact Power Socket 12-14 AWG Solder

Technical documentation and resources

Part	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Current Rating (Amps)	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish
TE Connectivity AMP Connectors 1-1393589-1	16 AWG	18 AWG	Socket	10 A	Power	39.4 Áin	1 Ám	Solder
TE Connectivity AMP Connectors 2-1393589-0			Pin	10 A	Power	39.4 Áin	1 Ám	Solder	Gold
TE Connectivity AMP Connectors 1393589-9	12 AWG	14 AWG	Socket	20 A	Power	39.4 Áin	1 Ám	Solder
TE Connectivity AMP Connectors 1-1393589-8			Pin	25 A	Power	39.4 Áin	1 Ám	PCB, Solder
TE Connectivity AMP Connectors 3-1393589-5			Pin, Center	10 A	Coaxial	39.4 Áin	1 Ám	PCB, Solder
