Technical Specifications
Parameters and characteristics for this part
| Specification | SPC58EC80C3QMC1Y |
|---|---|
| Connectivity | SPI, FlexRay, UART/USART, I2C, Ethernet, LINbus |
| Core Processor | e200z4 |
| Core Size [custom] | 32-Bit Dual-Core |
| Data Converters | A/D 10/12b SAR |
| EEPROM Size | 128 K |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External, Internal |

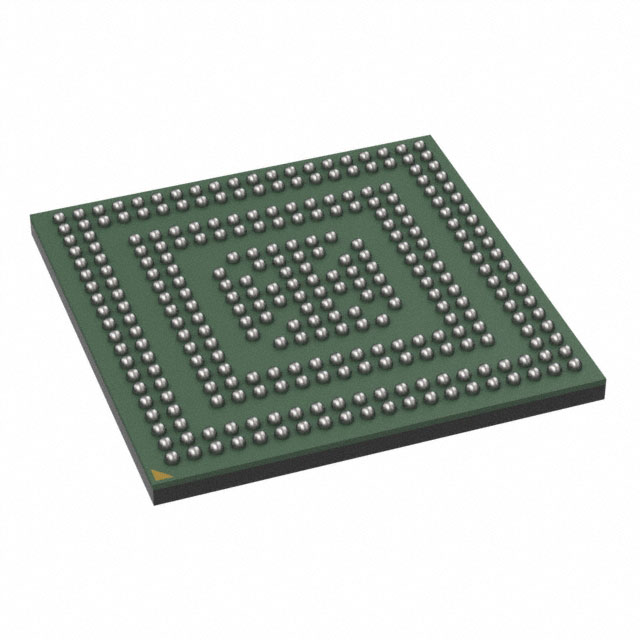

| Package / Case | 292-FBGA |
| Peripherals | POR, DMA, Temp Sensor, WDT |
| Program Memory Size | 4 MB |
| Program Memory Type | FLASH |
| Qualification | AEC-Q100 |
| RAM Size | 512 K |
| Speed | 180 MHz |
| Supplier Device Package | 292-FPBGA (17x17) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 540 | $ 22.57 | |
Description
General part information
SPC58EC80C3 Series
The SPC584Cx and SPC58ECx microcontroller is the first in a new family of devices superseding the SPC564Cx and SPC56ECx family. SPC584Cx and SPC58ECx builds on the legacy of the SPC564Cx and SPC56ECx family, while introducing new features coupled with higher throughput to provide substantial reduction of cost per feature and significant power and performance improvement (MIPS per mW). On the SPC584Cx and SPC58ECx device, there are two processor cores e200z420 and one e200z0 core embedded in the Hardware Security Module.
