Technical Specifications
Parameters and characteristics for this part
| Specification | SPC58EC80E1Q0C1X |
|---|---|
| Connectivity | LINbus, SPI, UART/USART, I2C, CANbus |
| Core Processor | e200z4 |
| Core Size [custom] | 32-Bit Dual-Core |
| Data Converters | A/D 10/12b SAR |
| EEPROM Size | 128 K |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External, Internal |

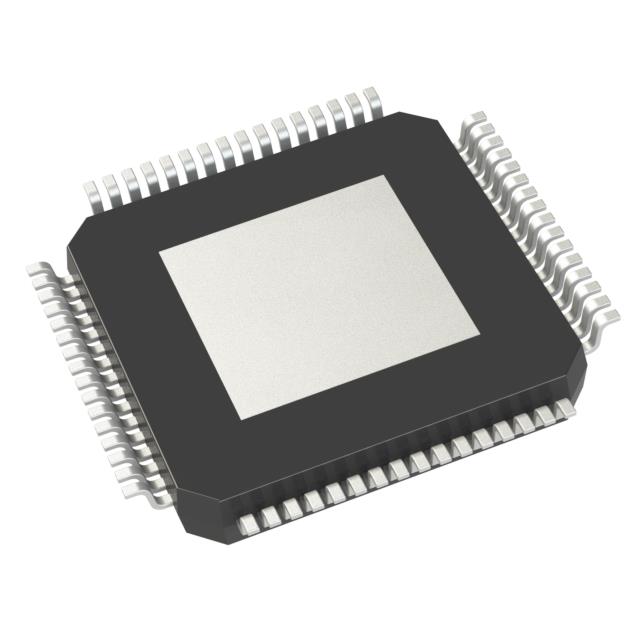

| Package / Case | 64-TQFP Exposed Pad |
| Peripherals | POR, DMA, Temp Sensor, WDT |
| Program Memory Size | 4 MB |
| Program Memory Type | FLASH |
| Qualification | AEC-Q100 |
| RAM Size | 512 K |
| Speed | 180 MHz |
| Supplier Device Package | 64-eTQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SPC58NHADPT386S Series
The SPC58EC-DIS is the ideal discovery board for accelerating development and securing a fast time-to-market, with a perfect balance among performances, functionalities and cost. Featuring SPC58 Chorus 4C line microcontrollers, it addresses a wide range of automotive applications such as body and gateway, in which safety and security needs are growing.
The SPC58EC-DIS allows full access to peripherals such as DSPI, LINFlexD, ISO CAN-FD. The new features satisfy the ASIL-B requirements.
The board provides full access to all CPU’s signals and GPIO’s, and offers compatibility with an Arduino shield, through dedicated connectors. Dedicated connectors allow plugging shields Arduino UNO-compatible; this feature makes it easy to expand the functionality of the SPC58EC-DIS.
