Technical Specifications
Parameters and characteristics for this part
| Specification | SPC58EC-DISP |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Interconnect System | Arduino R3 Shield |
| Mounting Type | Fixed |
| Platform | Discovery |
| Suggested Programming Environment | SPC5Studio |
| Type | MCU 32-Bit |
| Utilized IC / Part | SPC58EC80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 211.25 | |
Description
General part information
SPC58NHADPT386S Series

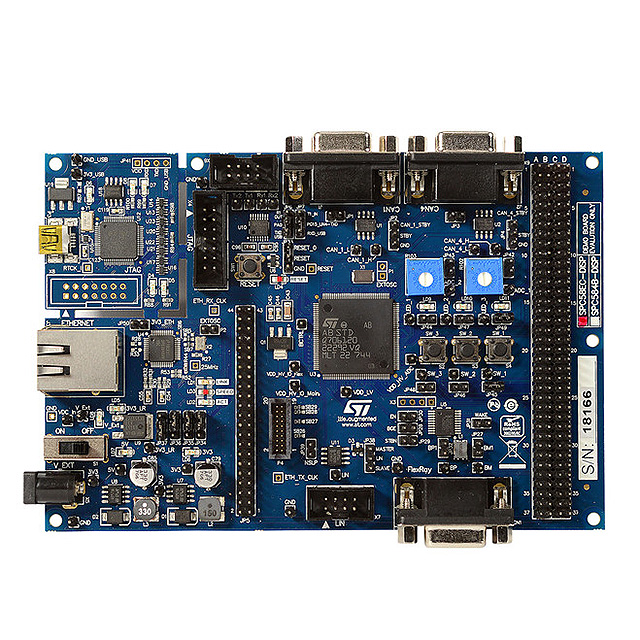

The SPC58EC-DIS is the ideal discovery board for accelerating development and securing a fast time-to-market, with a perfect balance among performances, functionalities and cost. Featuring SPC58 Chorus 4C line microcontrollers, it addresses a wide range of automotive applications such as body and gateway, in which safety and security needs are growing.
The SPC58EC-DIS allows full access to peripherals such as DSPI, LINFlexD, ISO CAN-FD. The new features satisfy the ASIL-B requirements.
The board provides full access to all CPU’s signals and GPIO’s, and offers compatibility with an Arduino shield, through dedicated connectors. Dedicated connectors allow plugging shields Arduino UNO-compatible; this feature makes it easy to expand the functionality of the SPC58EC-DIS.
