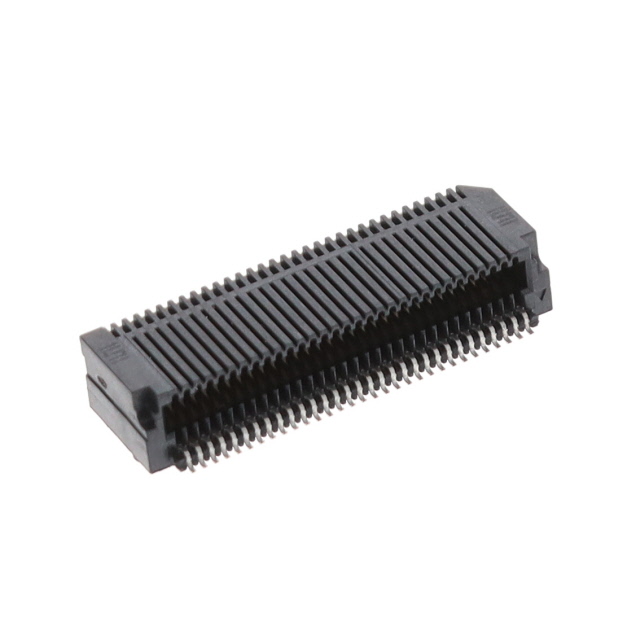

ERI8-031-S-D-RA-K
ActiveSamtec Inc.
CONN CARD EDGE SKT 62 POS 0.8MM SOLDER RA SMD TRAY
Deep-Dive with AI
Search across all available documentation for this part.
ERI8-031-S-D-RA-K
ActiveSamtec Inc.
CONN CARD EDGE SKT 62 POS 0.8MM SOLDER RA SMD TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERI8-031-S-D-RA-K |
|---|---|
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.32 | |
| 10 | $ 12.55 | |||
| 80 | $ 10.03 | |||
| 440 | $ 8.45 | |||
| 945 | $ 7.86 | |||
Description
General part information
ERI8-031 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Documents
Technical documentation and resources
No documents available
