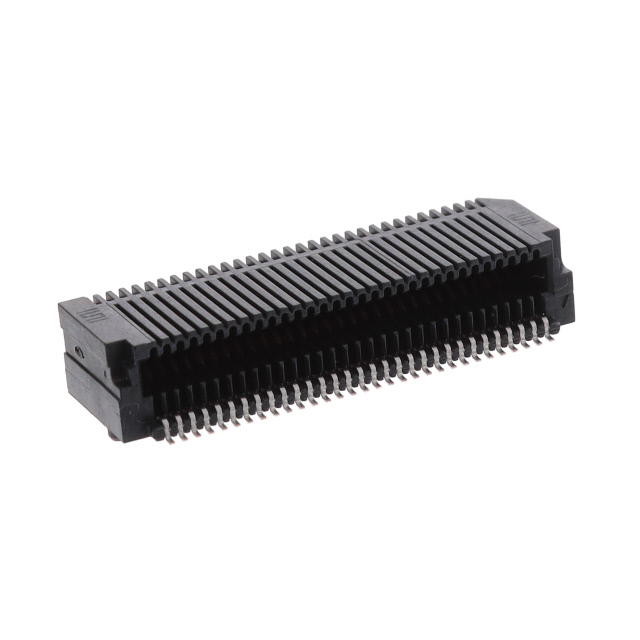

ERI8-031-S-D-RA-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 62POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
ERI8-031-S-D-RA-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 62POS 0.031
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERI8-031-S-D-RA-TR |
|---|---|
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.16 | |
| 10 | $ 9.34 | |||
| 100 | $ 7.28 | |||
| Digi-Reel® | 1 | $ 12.16 | ||
| 10 | $ 9.34 | |||
| 100 | $ 7.28 | |||
| Tape & Reel (TR) | 250 | $ 5.64 | ||
| 500 | $ 5.56 | |||
Description
General part information
ERI8-031 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
