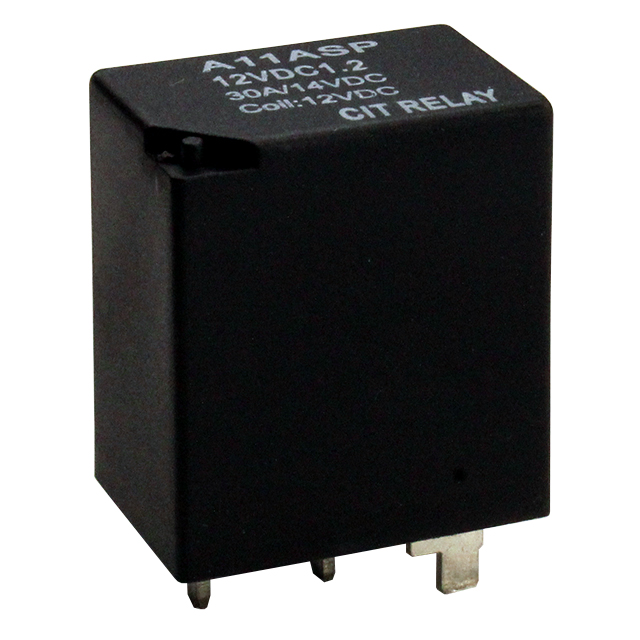

A11ASP12VDC1.2

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Relays

A11ASP12VDC1.2

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Deep-Dive with AI

DocumentsDatasheet A Series Relays

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 1.22

Description

General part information

A11ASP Series

RELAY AUTOMOTIVE SPST 30A 12V

Documents

Technical documentation and resources

Datasheet

A Series Relays

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A11ASP12VDC1.2	A11ASP Series

Coil Current	100 mA	50 - 125 mA
Coil Power	1.2 W	1.2 - 1.5 W
Coil Resistance	120 Ohms	96 - 480 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 A
Features	Sealed - Fully	Sealed - Fully, Diode, Resistor
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	8.4 VDC	8.4 - 18 VDC
Must Release Voltage	1.2 VDC	1.2 - 2.4 VDC
Operate Time	10 ms	10 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	7 ms	7 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	PC Pin	PC Pin

A11ASP Series

RELAY AUTOMOTIVE SPST 30A 24V

Part	Termination Style	Must Release Voltage	Coil Power	Mounting Type	Coil Resistance	Coil Current	Contact Rating (Current)	Release Time	Features	Contact Form	Switching Voltage	Coil Voltage	Contact Material	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type
CIT Relay and Switch A11ASP24VDC1.5D	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.2D	PC Pin	1.2 VDC	1.2 W	Through Hole	120 Ohms	100 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.5R	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Resistor, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.2	PC Pin	1.2 VDC	1.2 W	Through Hole	120 Ohms	100 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.2D	PC Pin	2.4 VDC	1.2 W	Through Hole	480 Ohms	50 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.2	PC Pin	2.4 VDC	1.2 W	Through Hole	480 Ohms	50 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.5D	PC Pin	1.2 VDC	1.5 W	Through Hole	96 Ohms	125 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.5	PC Pin	1.2 VDC	1.5 W	Through Hole	96 Ohms	125 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.5	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
