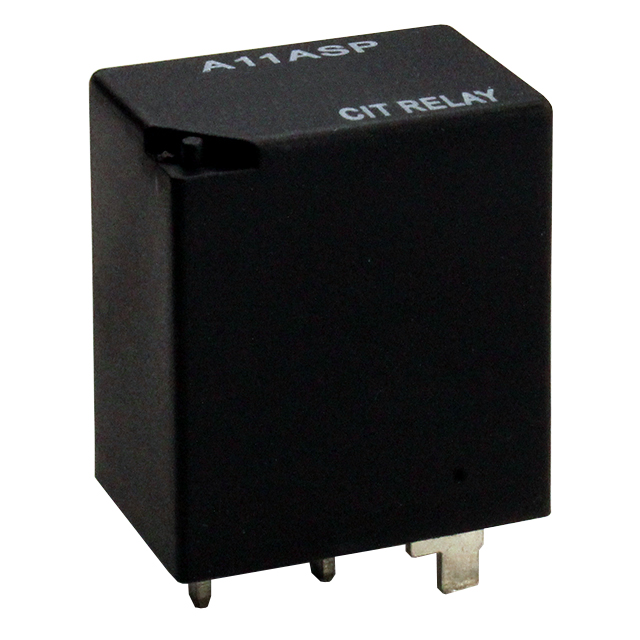

A11ASP24VDC1.2D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Relays

A11ASP24VDC1.2D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

DocumentsDatasheet A Series Relays

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.25
		10	$ 2.00
		25	$ 1.92
		50	$ 1.85
		100	$ 1.79
		250	$ 1.71
		500	$ 1.65
		1000	$ 1.59
		5000	$ 1.47

Description

General part information

A11ASP Series

RELAY AUTOMOTIVE SPST 30A 24V

Documents

Technical documentation and resources

Datasheet

A Series Relays

Datasheet

Specification	A11ASP24VDC1.2D	A11ASP Series

Coil Current	50 mA	50 - 125 mA
Coil Power	1.2 W	1.2 - 1.5 W
Coil Resistance	480 Ohms	96 - 480 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 A
Features	Sealed - Fully, Diode	Sealed - Fully, Diode, Resistor
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	8.4 - 18 VDC
Must Release Voltage	2.4 VDC	1.2 - 2.4 VDC
Operate Time	10 ms	10 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	7 ms	7 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	PC Pin	PC Pin

Part	Termination Style	Must Release Voltage	Coil Power	Mounting Type	Coil Resistance	Coil Current	Contact Rating (Current)	Release Time	Features	Contact Form	Switching Voltage	Coil Voltage	Contact Material	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type
CIT Relay and Switch A11ASP24VDC1.5D	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.2D	PC Pin	1.2 VDC	1.2 W	Through Hole	120 Ohms	100 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.5R	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Resistor, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.2	PC Pin	1.2 VDC	1.2 W	Through Hole	120 Ohms	100 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.2D	PC Pin	2.4 VDC	1.2 W	Through Hole	480 Ohms	50 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.2	PC Pin	2.4 VDC	1.2 W	Through Hole	480 Ohms	50 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.5D	PC Pin	1.2 VDC	1.5 W	Through Hole	96 Ohms	125 mA	30 A	7 ms	Diode, Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP12VDC1.5	PC Pin	1.2 VDC	1.5 W	Through Hole	96 Ohms	125 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	12 VDC	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 °C	10 ms	Non Latching
CIT Relay and Switch A11ASP24VDC1.5	PC Pin	2.4 VDC	1.5 W	Through Hole	384 Ohms	62.5 mA	30 A	7 ms	Sealed - Fully	SPST-NO (1 Form A)	75 VDC	24 VDC	Silver Tin Oxide (AgSnO)	18 VDC	85 °C	-40 °C	10 ms	Non Latching

Part

Termination Style

Must Release Voltage

Coil Power

Mounting Type

Coil Resistance

Coil Current

Contact Rating (Current)

Release Time

Features

Contact Form

Switching Voltage

Coil Voltage

Contact Material

Must Operate Voltage

Operating Temperature [Max]

Operating Temperature [Min]

Operate Time

Coil Type

CIT Relay and Switch

A11ASP24VDC1.5D

PC Pin

2.4 VDC

1.5 W

Through Hole

384 Ohms

62.5 mA

30 A

7 ms

Diode, Sealed - Fully

SPST-NO (1 Form A)

75 VDC

24 VDC

Silver Tin Oxide (AgSnO)

18 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP12VDC1.2D

PC Pin

1.2 VDC

1.2 W

Through Hole

120 Ohms

100 mA

30 A

7 ms

Diode, Sealed - Fully

SPST-NO (1 Form A)

75 VDC

12 VDC

Silver Tin Oxide (AgSnO)

8.4 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP24VDC1.5R

PC Pin

2.4 VDC

1.5 W

Through Hole

384 Ohms

62.5 mA

30 A

7 ms

Resistor, Sealed - Fully

SPST-NO (1 Form A)

75 VDC

24 VDC

Silver Tin Oxide (AgSnO)

18 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP12VDC1.2

PC Pin

1.2 VDC

1.2 W

Through Hole

120 Ohms

100 mA

30 A

7 ms

Sealed - Fully

SPST-NO (1 Form A)

75 VDC

12 VDC

Silver Tin Oxide (AgSnO)

8.4 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP24VDC1.2D

PC Pin

2.4 VDC

1.2 W

Through Hole

480 Ohms

50 mA

30 A

7 ms

Diode, Sealed - Fully

SPST-NO (1 Form A)

75 VDC

24 VDC

Silver Tin Oxide (AgSnO)

18 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP24VDC1.2

PC Pin

2.4 VDC

1.2 W

Through Hole

480 Ohms

50 mA

30 A

7 ms

Sealed - Fully

SPST-NO (1 Form A)

75 VDC

24 VDC

Silver Tin Oxide (AgSnO)

18 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP12VDC1.5D

PC Pin

1.2 VDC

1.5 W

Through Hole

96 Ohms

125 mA

30 A

7 ms

Diode, Sealed - Fully

SPST-NO (1 Form A)

75 VDC

12 VDC

Silver Tin Oxide (AgSnO)

8.4 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP12VDC1.5

PC Pin

1.2 VDC

1.5 W

Through Hole

96 Ohms

125 mA

30 A

7 ms

Sealed - Fully

SPST-NO (1 Form A)

75 VDC

12 VDC

Silver Tin Oxide (AgSnO)

8.4 VDC

85 °C

-40 °C

10 ms

Non Latching

CIT Relay and Switch

A11ASP24VDC1.5

PC Pin

2.4 VDC

1.5 W

Through Hole

384 Ohms

62.5 mA

30 A

7 ms

Sealed - Fully

SPST-NO (1 Form A)

75 VDC

24 VDC

Silver Tin Oxide (AgSnO)

18 VDC

85 °C

-40 °C

10 ms

Non Latching
