306-022-520-178
ActiveEDAC Inc.

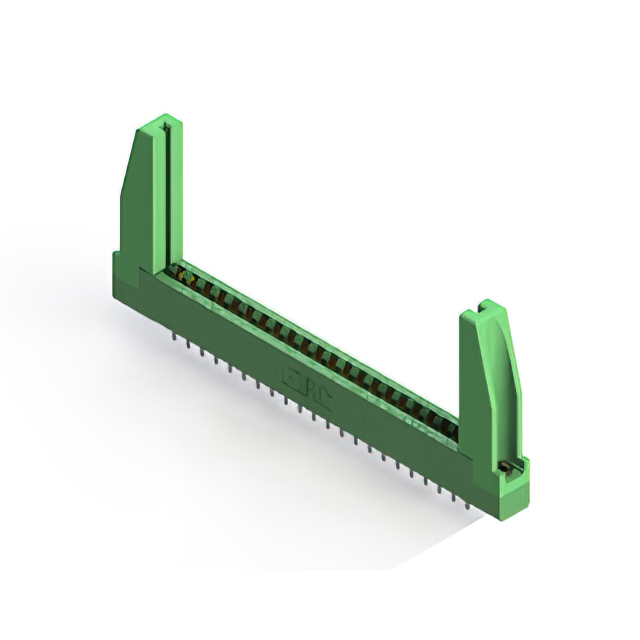

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-022-520-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-022-520-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-022 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Read Out | Contact Material | Contact Type | Flange Feature | Number of Positions | Features | Mounting Type | Number of Rows | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Termination Rows | Color | Card Type | Material - Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | Card Guides | Panel Mount Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Tin | ||||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | Card Guides | Panel Mount Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | ||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 44 | Panel Mount Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Tin | 3.96 mm | 0.156 in | |||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 44 | Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 44 | Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Tin | ||||||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 44 | Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | Card Guides | Panel Mount Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Tin | ||||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | Card Guides | Panel Mount Through Hole | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | ||
EDAC Inc. | -40 °C | 105 ░C | Female | Dual | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 44 | Card Guides | 2 | 22 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 1 | Green | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-022 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
