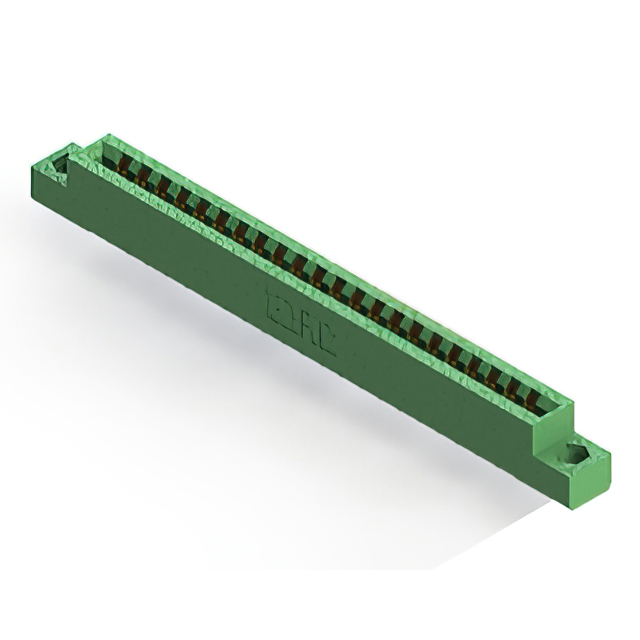

306-022-521-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 44POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Solutions Brochure +1

306-022-521-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 44POS 0.156

Deep-Dive with AI

DocumentsDatasheet Interconnect Solutions Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-022-521-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-022 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Read Out	Contact Material	Contact Type	Flange Feature	Number of Positions	Features	Mounting Type	Number of Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Termination Rows	Color	Card Type	Material - Insulation	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-022-420-168	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44	Card Guides	Panel Mount Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Tin
EDAC Inc. 306-022-521-168	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44	Card Guides	Panel Mount Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold	10 Áin	0.25 Ám
EDAC Inc. 306-022-420-104	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	44		Panel Mount Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Tin			3.96 mm	0.156 in
EDAC Inc. 306-022-525-102	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	44		Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold			3.25 mm	0.128 "
EDAC Inc. 306-022-421-101	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever		44		Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Tin
EDAC Inc. 306-022-521-104	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	44		Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 306-022-500-108	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44			2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold	10 Áin	0.25 Ám
EDAC Inc. 306-022-421-158	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44	Card Guides	Panel Mount Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Tin
EDAC Inc. 306-022-520-178	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44	Card Guides	Panel Mount Through Hole	2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold	10 Áin	0.25 Ám
EDAC Inc. 306-022-500-178	-40 °C	105 ░C	Female	Dual	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	44	Card Guides		2	22	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	Green	Non Specified - Dual Edge	Polyester Thermoplastic	Gold	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.20

Description

General part information

306-022 Series

44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
