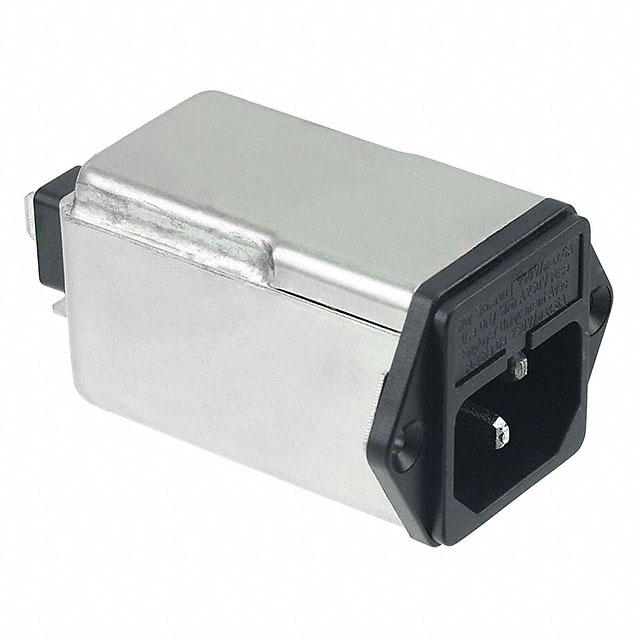

6EGG1C-1
ActiveTE Connectivity Raychem Cable Protection
POWER ENTRY MODULE EMI/RFI FILTERED M 3 POS 250VACVAC 6A/CONTACT SWITCH ST 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
6EGG1C-1
ActiveTE Connectivity Raychem Cable Protection
POWER ENTRY MODULE EMI/RFI FILTERED M 3 POS 250VACVAC 6A/CONTACT SWITCH ST 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EGG1C-1 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.96 mm |
| Panel Cutout Dimensions [y] | 33.02 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Corcom GG Series
Power Entry Module, None Input, No Switch, Complete Can, Right Angle, 6 A, .250" FASTON Output, 250 VAC, Filtered, Corcom GG, Power Entry Modules
