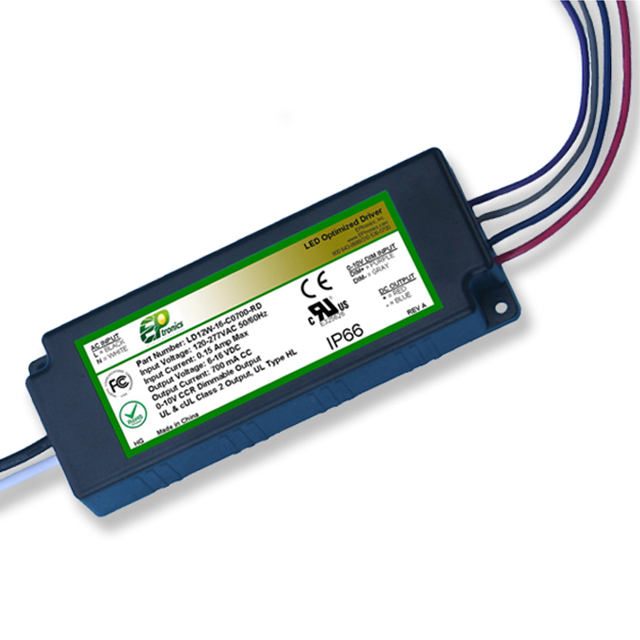

LD12W-36-C0350-RD

Active

EPtronics, Inc.

18~36V@350MA, 0~10V DIM TO 0%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD12W-36-C0350-RD

Active

EPtronics, Inc.

18~36V@350MA, 0~10V DIM TO 0%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD12W-36-C0350-RD	LD12W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	350 mA	1 - 800 mA
Dimming	-	Non-Dimmable
Dimming [Max] [custom]	10 V	10 V
Dimming [Min] [custom]	0 V	0 V
Efficiency	81 %	77 - 84 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	50 - 60 °C
Operating Temperature [Min]	-40 °C	-40 - -30 ░C
Power (Watts)	12.6 W	7.2 - 13 W
Ratings	IP66	IP66
Size / Dimension [x]	85.1 mm	85.1 mm
Size / Dimension [x]	3.35 in	3.35 in
Size / Dimension [y]	36.1 mm	36.1 mm
Size / Dimension [y]	1.42 in	1.42 in
Size / Dimension [z]	23.1 mm	23.1 mm
Size / Dimension [z]	0.91 in	0.91 in
Standard Number	C22.2, UL 8750	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	100 VAC	90 - 100 VAC
Voltage - Isolation	3750 V	3750 V
Voltage - Output	-	12 - 24 V
Voltage - Output [Max]	36 V	12 - 48 V
Voltage - Output [Min]	18 V	6 - 24 V
Weight	127.6 g	127.6 g
Weight	0.281 lb	0.281 lb

LD12W Series

LED DRIVER AC/DC CC 8-16V 800MA

Part	Number of Outputs	Topology	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Ratings	Power (Watts)	Features	Approval Agency	Mounting Type	Efficiency	Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Dimming [Max] [custom]	Dimming [Min] [custom]	Weight	Weight	Standard Number	Voltage - Output	Dimming
EPtronics, Inc. LD12W-16-C0800	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	13 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	800 mA	3750 V	50 °C	-30 ░C	16 V	8 V	Wire Leads
EPtronics, Inc. LD12W-48-C0220-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	10.6 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount		Constant Current	220 mA	3750 V	60 °C	-40 °C	48 V	24 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-16-C0800-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12.8 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	80 %	Constant Current	800 mA	3750 V	60 °C	-40 °C	16 V	8 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-48-C0125-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	7.2 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	81 %	Constant Current	125 mA	3750 V	60 °C	-40 °C	48 V	24 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-24	1	AC DC Converter	90 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Voltage	500 mA	3750 V	50 °C	-30 ░C			Wire Leads			127.6 g	0.281 lb	C22.2, UL 8750	24 V	Non-Dimmable
EPtronics, Inc. LD12W-12-C1000-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	1 A	3750 V	60 °C	-40 °C	12 V	6 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-36-C0350	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	13 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	80 %	Constant Current	350 mA	3750 V	50 °C	-30 ░C	36 V	18 V	Wire Leads
EPtronics, Inc. LD12W-16-C0700	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	11 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	700 mA	3750 V	50 °C	-30 ░C	16 V	8 V	Wire Leads
EPtronics, Inc. LD12W-36-C0350-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12.6 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	81 %	Constant Current	350 mA	3750 V	60 °C	-40 °C	36 V	18 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-12-C1000	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	77 %	Constant Current	1 A	3750 V	50 °C	-30 ░C	12 V	6 V	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.50
		5	$ 24.73
		10	$ 23.99
		25	$ 23.27
		50	$ 22.57
		100	$ 21.89

Description

General part information

LD12W Series

350mA 18 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources
