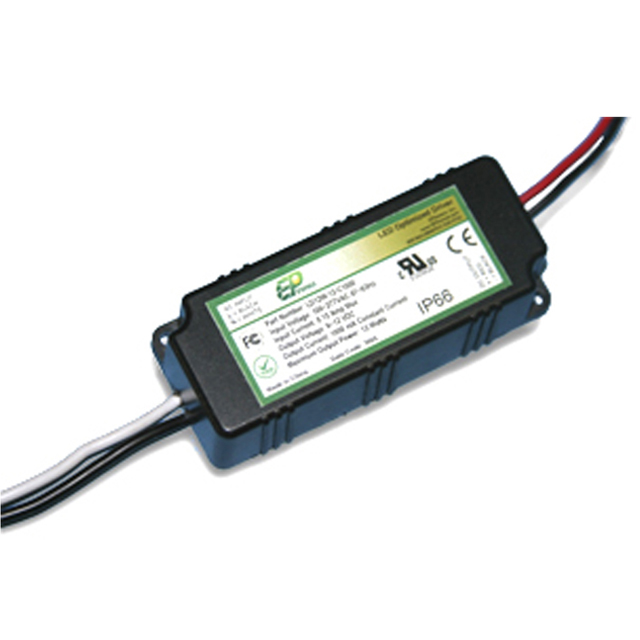

LD12W-36-C0350

Obsolete

EPtronics, Inc.

LED DRIVER AC/DC CC 18-36V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD12W-36-C0350

Obsolete

EPtronics, Inc.

LED DRIVER AC/DC CC 18-36V 350MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LD12W Series

350mA 18 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD12W-36-C0350	LD12W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	350 mA	1 - 800 mA
Dimming	-	10 V
Dimming	-	0 V
Dimming	-	Non-Dimmable
Efficiency	80 %	77 - 84 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	50 °C	50 - 60 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 ░C
Power (Watts)	13 W	7.2 - 13 W
Ratings	IP66	IP66
Size / Dimension [x]	85.1 mm	85.1 mm
Size / Dimension [x]	3.35 in	3.35 in
Size / Dimension [y]	36.1 mm	36.1 mm
Size / Dimension [y]	1.42 in	1.42 in
Size / Dimension [z]	23.1 mm	23.1 mm
Size / Dimension [z]	0.91 in	0.91 in
Standard Number	-	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	100 VAC	90 - 100 VAC
Voltage - Isolation	3750 V	3750 V
Voltage - Output	-	12 - 24 V
Voltage - Output [Max]	36 V	12 - 48 V
Voltage - Output [Min]	18 V	6 - 24 V
Weight	-	127.6 g
Weight	-	0.281 lb

LD12W Series

LED DRIVER AC/DC CC 8-16V 800MA

Part	Number of Outputs	Topology	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Ratings	Power (Watts)	Features	Approval Agency	Mounting Type	Efficiency	Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Dimming [Max] [custom]	Dimming [Min] [custom]	Weight	Weight	Standard Number	Voltage - Output	Dimming
EPtronics, Inc. LD12W-16-C0800	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	13 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	800 mA	3750 V	50 °C	-30 ░C	16 V	8 V	Wire Leads
EPtronics, Inc. LD12W-48-C0220-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	10.6 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount		Constant Current	220 mA	3750 V	60 °C	-40 °C	48 V	24 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-16-C0800-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12.8 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	80 %	Constant Current	800 mA	3750 V	60 °C	-40 °C	16 V	8 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-48-C0125-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	7.2 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	81 %	Constant Current	125 mA	3750 V	60 °C	-40 °C	48 V	24 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-24	1	AC DC Converter	90 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Voltage	500 mA	3750 V	50 °C	-30 ░C			Wire Leads			127.6 g	0.281 lb	C22.2, UL 8750	24 V	Non-Dimmable
EPtronics, Inc. LD12W-12-C1000-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	1 A	3750 V	60 °C	-40 °C	12 V	6 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-36-C0350	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	13 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	80 %	Constant Current	350 mA	3750 V	50 °C	-30 ░C	36 V	18 V	Wire Leads
EPtronics, Inc. LD12W-16-C0700	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	11 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	78 %	Constant Current	700 mA	3750 V	50 °C	-30 ░C	16 V	8 V	Wire Leads
EPtronics, Inc. LD12W-36-C0350-RD	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12.6 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	81 %	Constant Current	350 mA	3750 V	60 °C	-40 °C	36 V	18 V	Wire Leads	10 V	0 V	127.6 g	0.281 lb	C22.2, UL 8750
EPtronics, Inc. LD12W-12-C1000	1	AC DC Converter	100 VAC	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	305 VAC	IP66	12 W	OCP, OVP, SCP	CE, cURus, FCC	Chassis Mount	77 %	Constant Current	1 A	3750 V	50 °C	-30 ░C	12 V	6 V	Wire Leads
