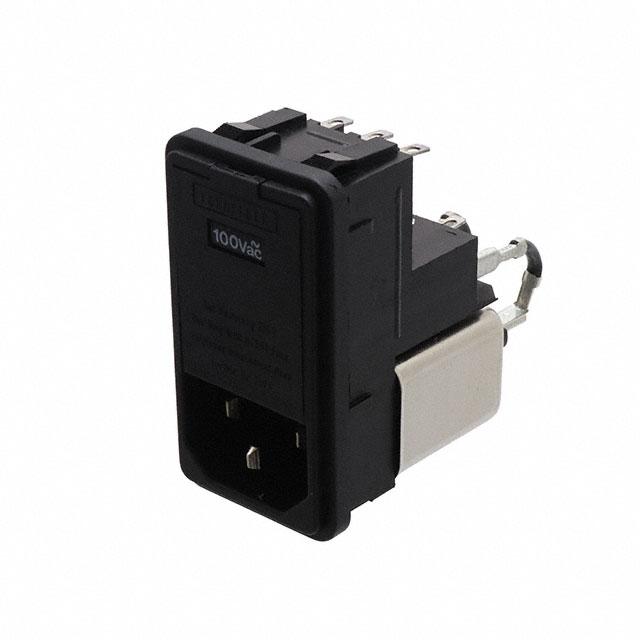

FN372B-2-21
ActiveTE Connectivity Raychem Cable Protection
FN372B-2-21
Deep-Dive with AI
Search across all available documentation for this part.
FN372B-2-21
ActiveTE Connectivity Raychem Cable Protection
FN372B-2-21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN372B-2-21 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 10 A |
| Features | Bleed Resistor, Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness [Max] | 0.126 in |
| Panel Thickness [Max] | 3.2 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 43.01 | |
| 10 | $ 36.55 | |||
| 40 | $ 33.15 | |||
| 80 | $ 31.57 | |||
| 120 | $ 30.68 | |||
| 280 | $ 28.93 | |||
Description
General part information
Schaffner FN370 Series
2 A, Unfiltered, 2 µA Leakage Current @ 250VAC, 50Hz, FASTON, PD2 Pollution Degree, IP40, UL 94V-2, Schaffner FN370, Inlet Filters
